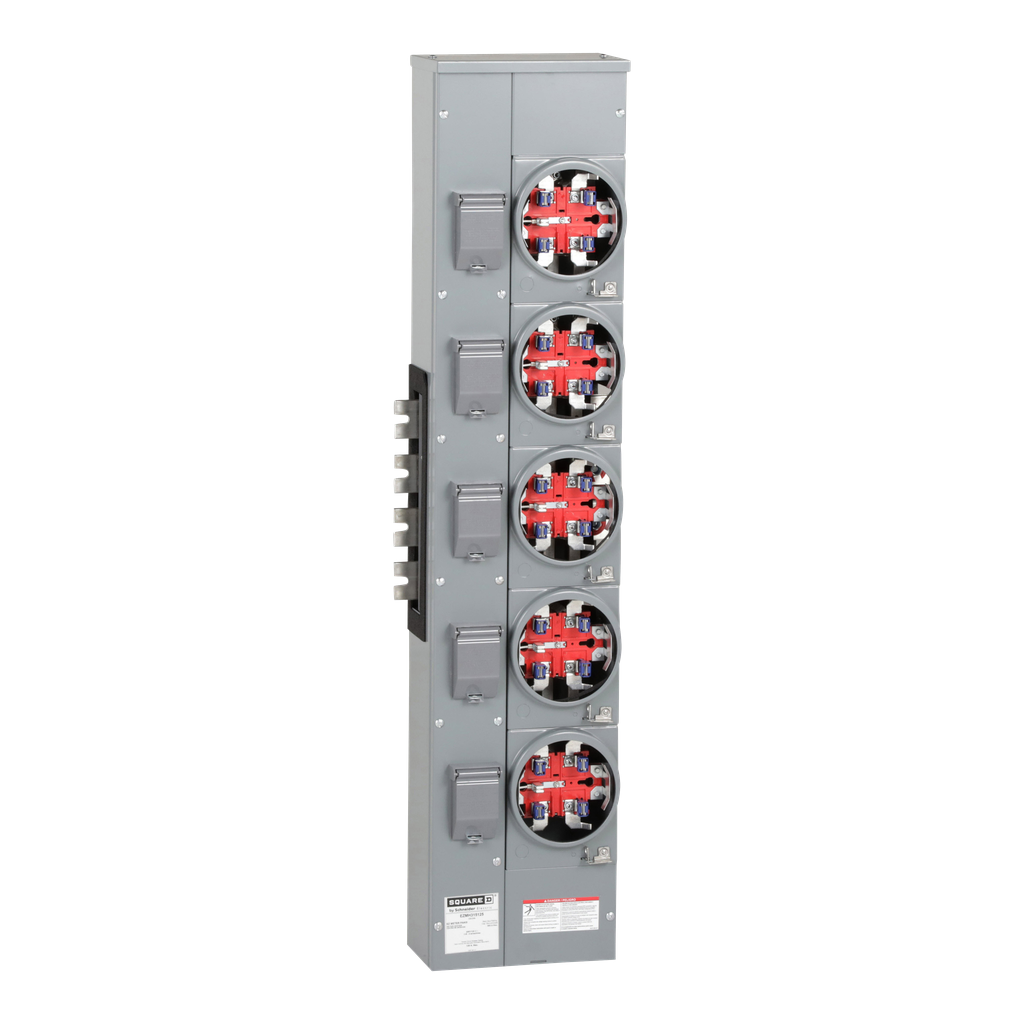

Square D EZ Meter-Pak branch meter compartments provide a compact footprint for multi unit construction applications. This branch unit supplies three phases in, one phase out with a four wire configuration. It is rated for 208Y/120VAC and 125A. The meter socket compartment has five ringless, five jaw meter sockets with a horn bypass without jaw release. The compartment has four horizontal 800A rated busbars. The busbars come with Visi-Tite joint nuts for connections, eliminating the need for torque readings. It is compatible with 40A to 125A two-pole plug-on QO circuit breakers. It is compliant with UL standards and the steel enclosure has a rating of NEMA 3R.
Branch unit, EZ Meter-Pak, 125A, 5 sockets, 208Y/120VAC, horn bypass, ringless, 800A busbar
Branch unit, EZ Meter-Pak, 125A, 5 sockets, 208Y/120VAC, horn bypass, ringless, 800A busbar
SKU: 14634834
Category: Meters & Accessories
