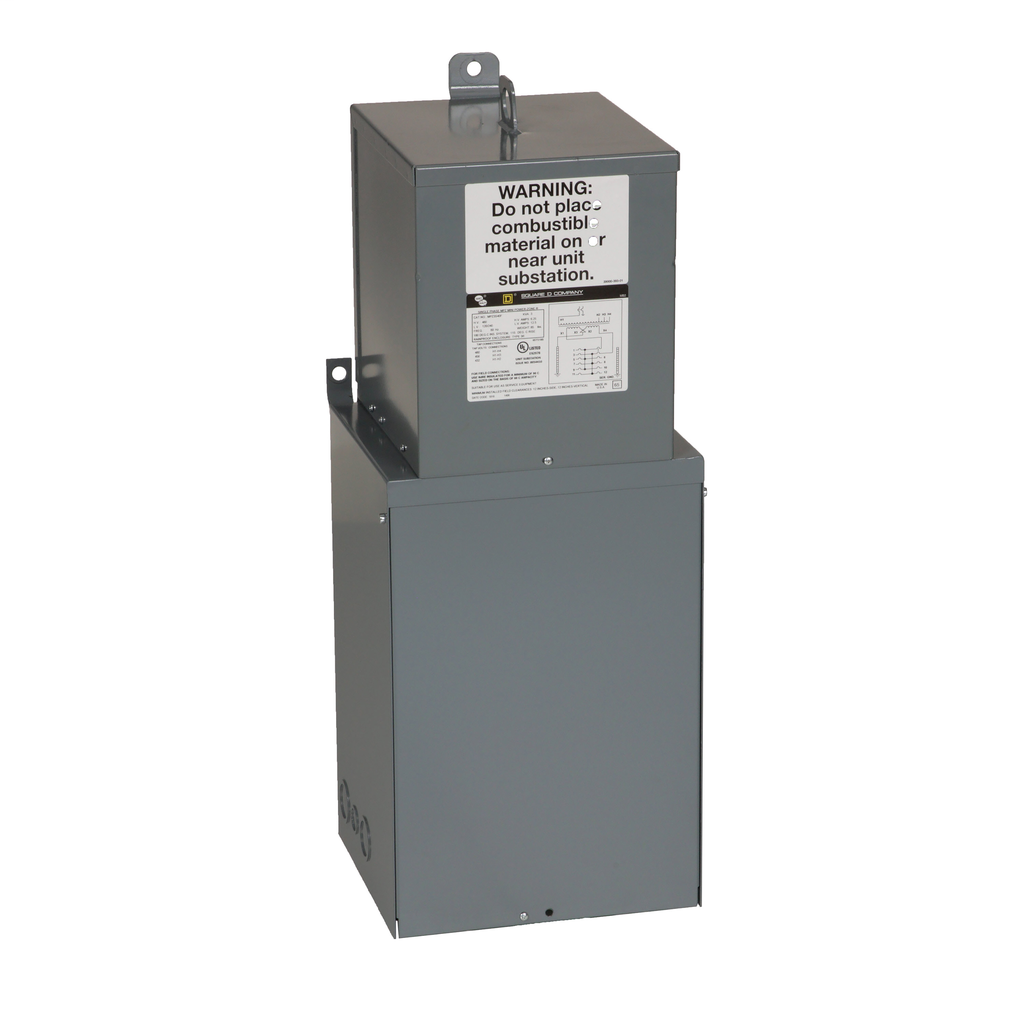

MINI PWR-ZONE DRY 1PH 3KVA 480V-120/240V

Square D offers a line of products of Mini Power-Zone LV substation that combine a transformer and circuit breaker distribution panel into one substation. These power supply substation from Schneider Electric provides the answer to when a portable compact power supply is required. The Mini Power-Zone is furnished as complete package and because of there is considerable savings in installation time and costs. These substation can be used in single or three phase solutions and have multiple AIC ratings. The LV substation use transformers are epoxy-resin encapuslated and in the panel section QO style circuit breakers are used. These substations come in NEMA type 3R enclosure and can be used in outdoor and indoor applications. These sealed transformer in this mini power zone is single phase transformer that has power rating 3kVA with a primary voltage of 480V and secondary voltage of 240/120V. This transformer has a temperature rise of 115 °C and the substation has interrupting rating of 18 kA. The load center in this substation uses QO circuit breakers and has a 10 spaces. Dimensions are 32.7 in (H), 12 in (W), 11.9 in (D). This transformer is wall mounted and is painted sheet steel material.
