HomeCircuit Breakers Mini circuit breaker, QO, 30A, 3 pole, 120/240VAC, 10kA, plug in mount, ring terminals
Previous product
primary_image
Head for key selector switch, Harmony XB4, 3 position with 421e
Back to products
Next product
primary_image
Busway I-Line Breaker Plug-in Unit, 60A, H-Frame, Micrologic 6.2A, 14kA-600V, 4W

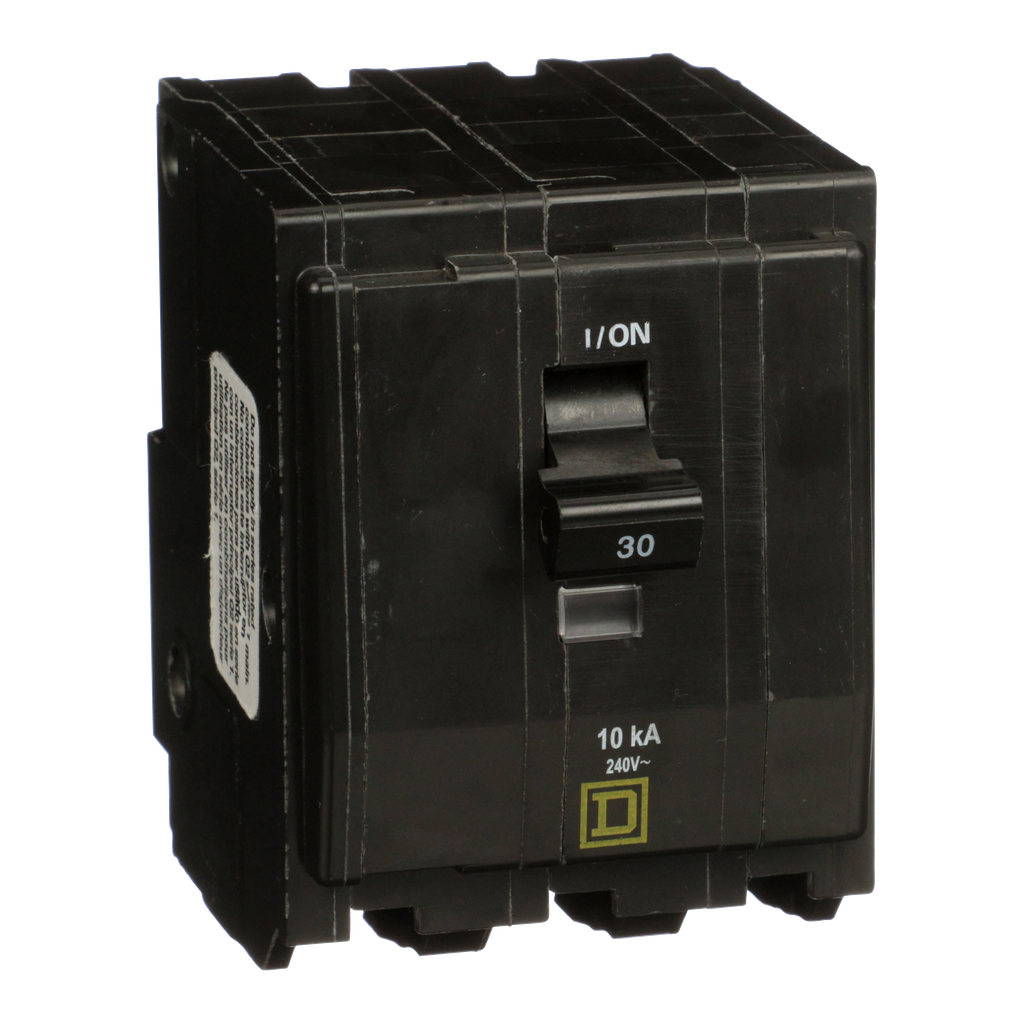

Mini circuit breaker, QO, 30A, 3 pole, 120/240VAC, 10kA, plug in mount, ring terminals

Mini circuit breaker, QO, 30A, 3 pole, 120/240VAC, 10kA, plug in mount, ring terminals

SKU: 1279934 Category: Circuit Breakers
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • Reviews (0)
Description

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 3 pole QO circuit breaker is rated at 30A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes ring terminals. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
