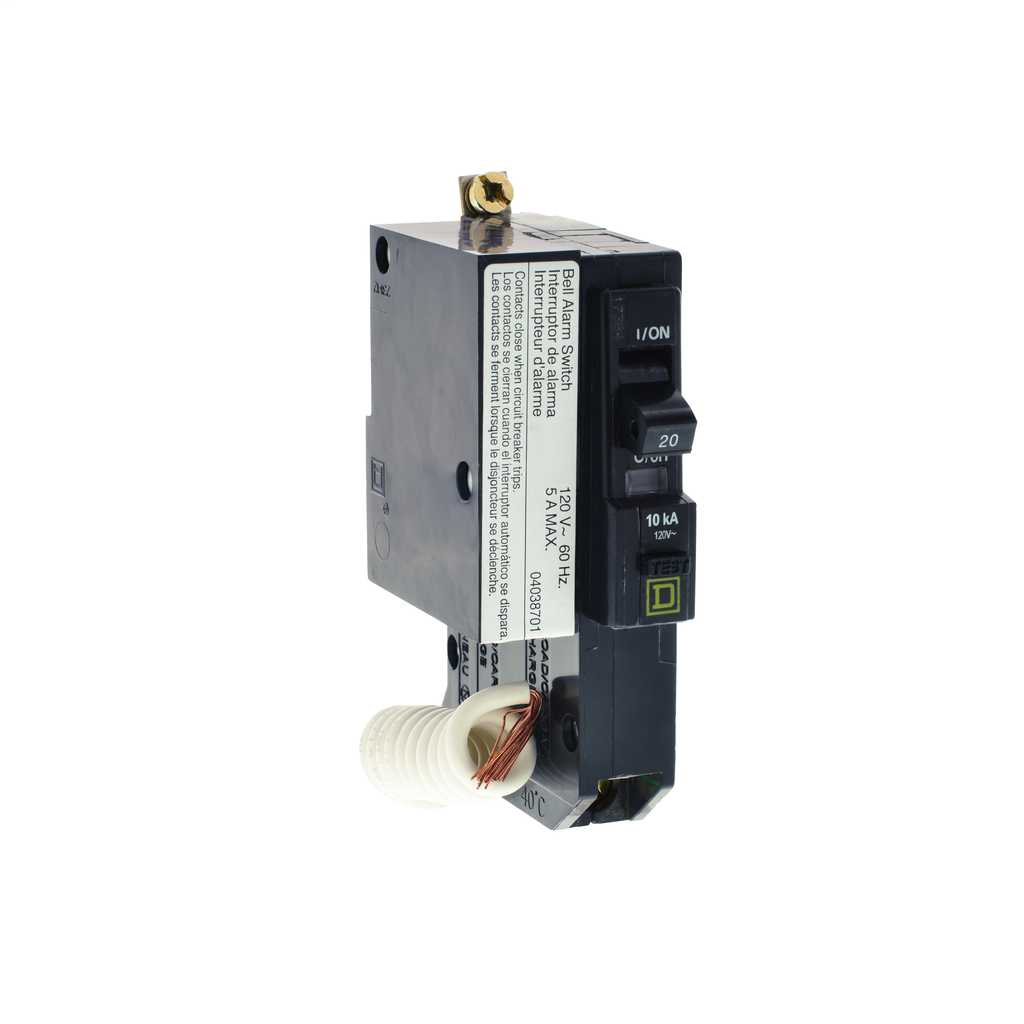

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an overcenter, trip-free toggle mechanism with quick-make, quickbreak action and positive handle indication They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 1 pole QOB bolt on EPD circuit breaker with common trip is rated 20 A at 120/240 VAC. This breaker provides overload and short circuit protection combined with Class B ground fault protection. Is designed to provide ground fault protection of equipment at a 30 mA level. It is not designed to protect people from electrical shock. Circuit breaker has a normally closed auxiliary switch. This unit provides 10 kA breaking capacity. A full line of factory installed accessories is also available such as shunt trips, auxiliary switches and alarm switches. QO breakers use a compact 3/4 inch width design for small system footprint. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
Mini CB, QO, 20 A, 1P, 120 V, 10 kA, Bolt on, EPD, Alarm Switch
Mini CB, QO, 20 A, 1P, 120 V, 10 kA, Bolt on, EPD, Alarm Switch
SKU: 3182604
Category: Power Distribution
Reviews (0)
Be the first to review “Mini CB, QO, 20 A, 1P, 120 V, 10 kA, Bolt on, EPD, Alarm Switch” Cancel reply
