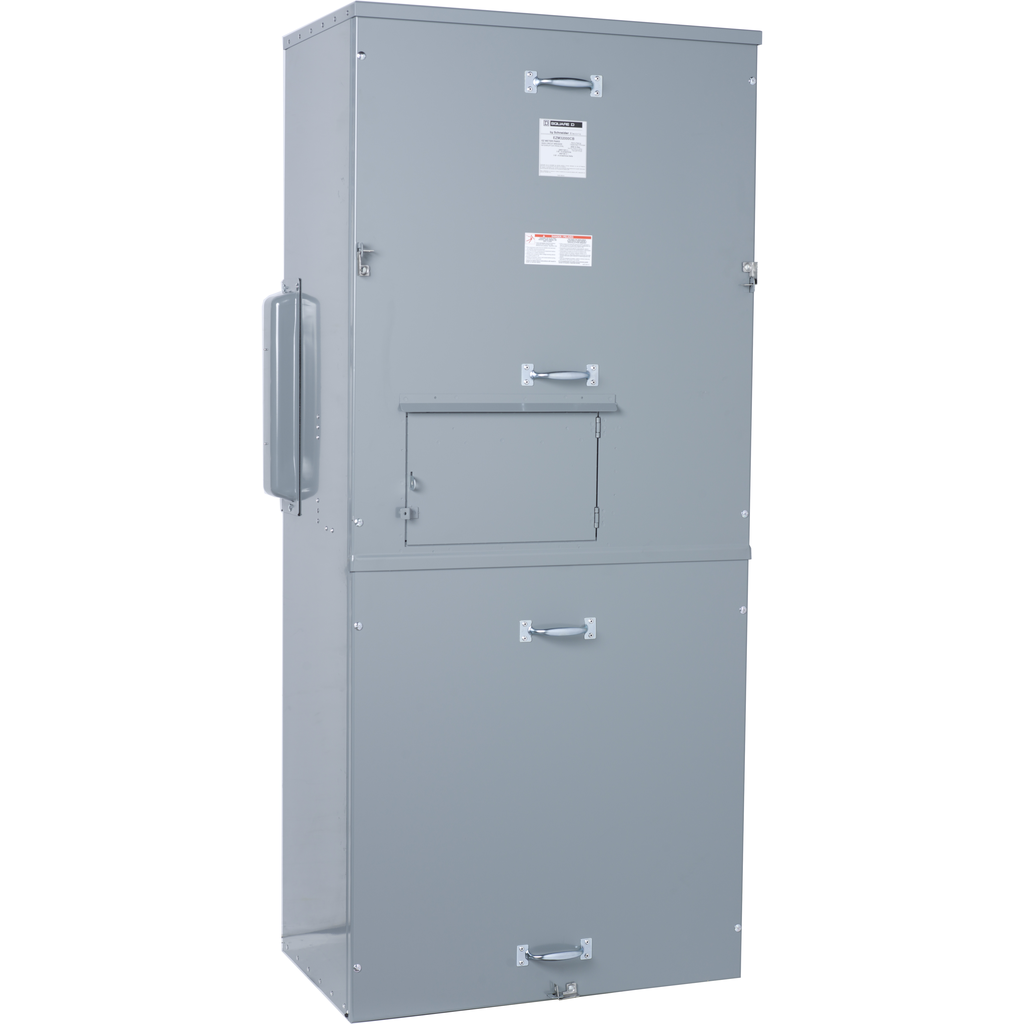

Square D™ EZ Meter-Pak™ devices are the industry choice, providing better solutions to meet more multi-unit construction needs than any other line in the industry. EZM Busway tap devices have been designed with space savings in mind so that they not only meet challenging job requirements, but the compact footprint also makes them easier to handle and install. This main unit is a main circuit breaker device with underground feed only, and has a current rating of 2000 A. The bus bar has a rating of 1200 A and the unit is available as service equipment for 3 phase, 4 wires applications. The factory installed circuit breaker included is a RJF36200. Visi-Tite® nut eliminates the need for time-consuming torque readings when connecting devices. External mounting channels permits immediate installation with no disassembly or adjustment required. Meets EUSERC Standards up to 1200A max.
Main unit, EZ Meter-Pak, 2000A, 208Y/120VAC, 3 phase, 4 wire, 1200A busbar, 100kA SCCR main breaker, under
Main unit, EZ Meter-Pak, 2000A, 208Y/120VAC, 3 phase, 4 wire, 1200A busbar, 100kA SCCR main breaker, under
SKU: 9037517
Category: Meters & Accessories
Reviews (0)
Be the first to review “Main unit, EZ Meter-Pak, 2000A, 208Y/120VAC, 3 phase, 4 wire, 1200A busbar, 100kA SCCR main breaker, under” Cancel reply
