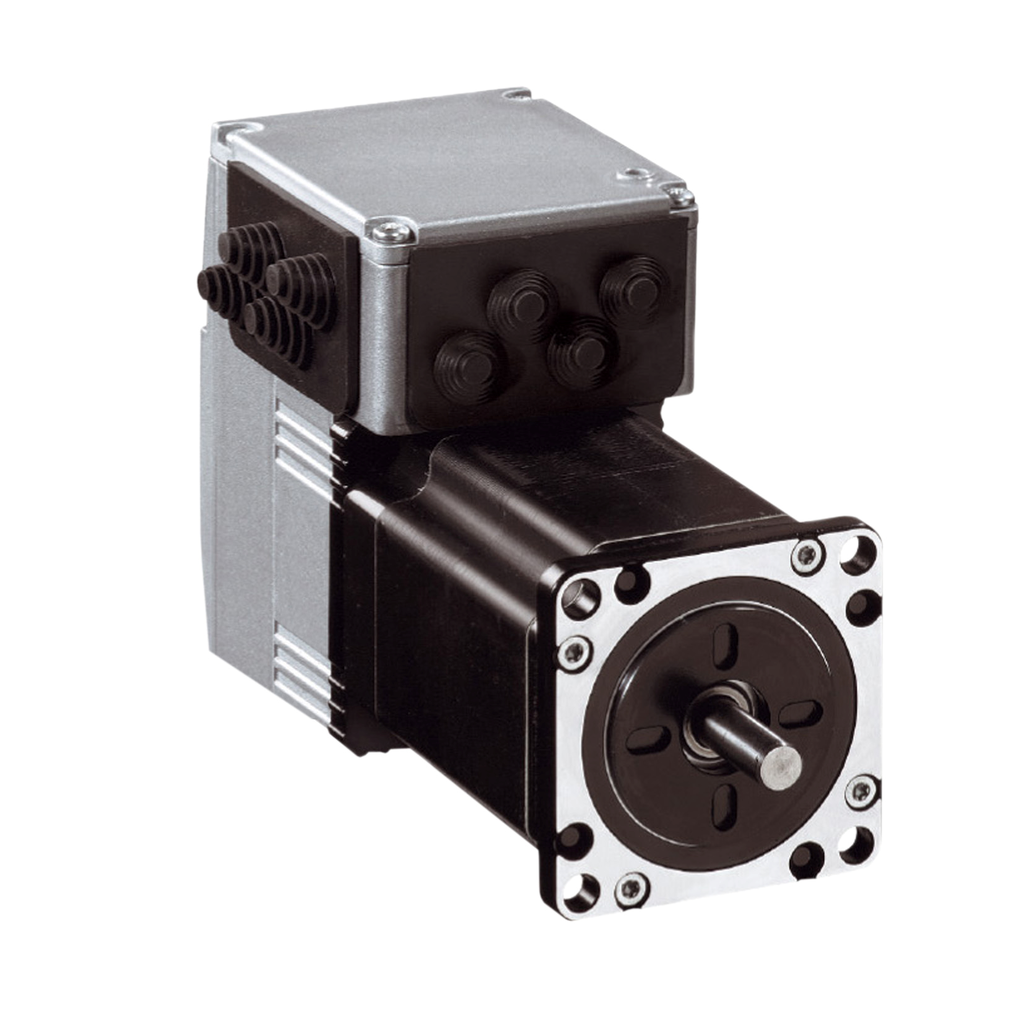

This product is part of the Lexium ILS range, an offer of integrated motion drives for motion control. The integrated motion drive with a 6-pole stepper motor features an integrated CANopen DS301 communication interface. The 3-phase stepper motor with a rated supply voltage of 24V, 36V DC, a maximum current consumption of 3500mA and a nominal speed of 600RPM at 36V and 300RPM at 24V. It offers medium speed of rotation and medium torque with untapped shaft end. It is furnished with printed circuit board connector for electrical connection. It is an IP41 (shaft bushing) and IP54 (total except shaft bushing) rated product. The length of this product is 115.9mm and the centering collar dimensions are 1.6mm (depth) x 38.1mm (diameter). It weighs 1.6kg. It is suitable for printing, paper, packaging, handling, labelling, textile industry, electronics manufacture and medical technology applications. This product is certified by CUL, TUV and UL. It meets EN/IEC 61800-3, EN 61800-3 2001, IEC 61800-3, Ed 2, IEC 60072-1 and EN/IEC 50178 standards. It supports 57mm flange mount with a natural convection cooling system. Lexium integrated drives integrate motor, positioning controller, power electronics, Fieldbus and safety function in a single device. Integrated drives for motion control with stepper, servo or brushless DC motor.
integrated drive ILS with stepper motor – 24..36 V – CANopen DS301 – 3.5A
integrated drive ILS with stepper motor – 24..36 V – CANopen DS301 – 3.5A
SKU: 172570216
