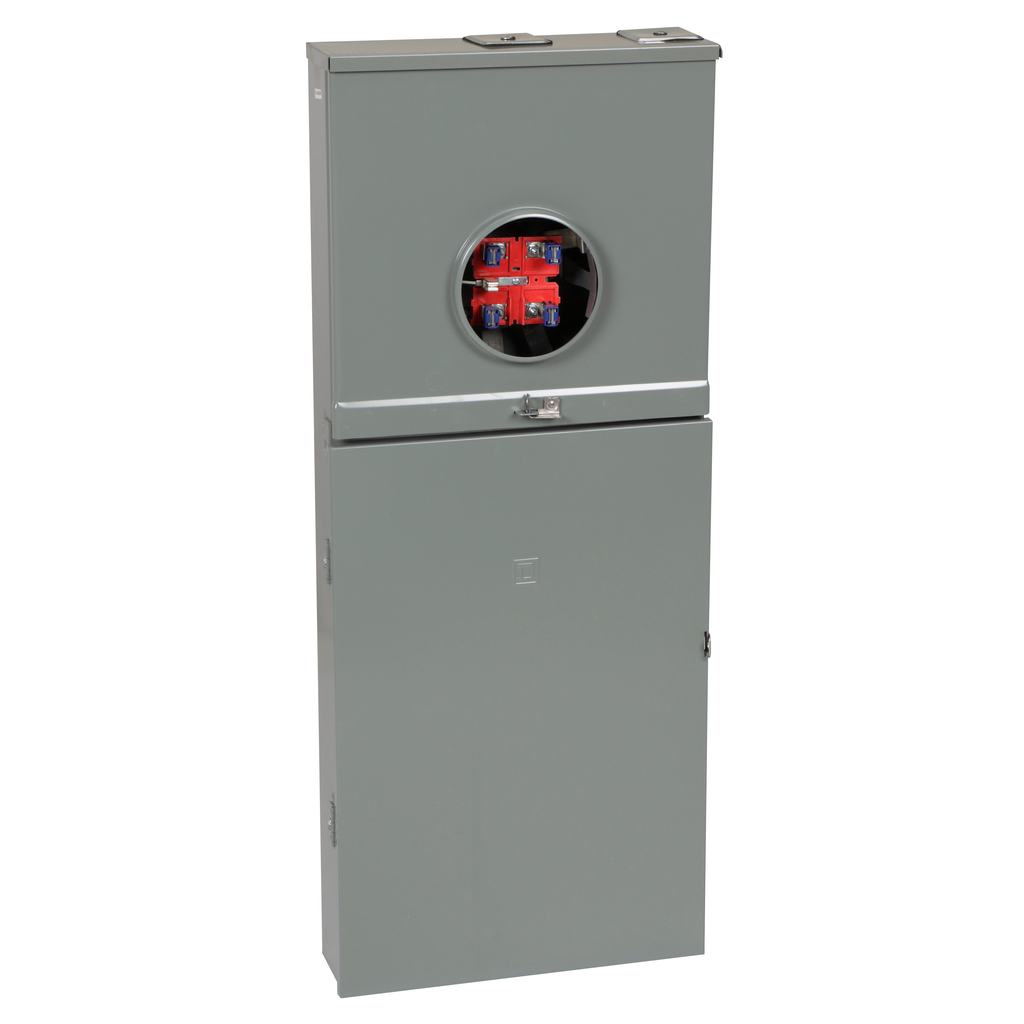

Homeline All In One combination service entrance devices are available with ring or ringless type meter socket designs. Devices have factory installed service disconnect(s) in most cases. Supplied with 100% branch neutrals, all unused terminals may be used for equipment grounding wires. These Homeline combination service entrance devices meet the Federal Specification W-P-115c as Type 1, Class 2 specifications. This Homeline All In One combination service entrance device with a plug on neutral has a ringless meter socket. This unit has no bypass. This unit can be feed from an overhead or underground service. The service disconnect is a QOM2200VH which has a maximum rating of 200 A. Device has a 22 kA short circuit current rating. Load center has 30 spaces which will accept up to 12 tandem Homeline circuit breakers. This unit has a NEMA 3R surface mounting enclosure that is 45.47 inches tall, 18.78 inches wide and 4.41 inches deep. The line side lugs will accept 6 AWG to 350 kcmil copper or aluminum wire. The service ground lug will accept 8 AWG to 2/0 AWG copper or aluminum wire. This Homeline All In One combination service entrance device with plug on neutral is UL Listed.
All in one, Homeline, combination service entrance, ringless socket, 200A, surface, 30 spaces, 42 circuits, 22kA SCCR, OH, UG, no bypass, PON
All in one, Homeline, combination service entrance, ringless socket, 200A, surface, 30 spaces, 42 circuits, 22kA SCCR, OH, UG, no bypass, PON
SKU: 16945768
Category: Meters & Accessories
