HomeAutomation & Control female – M12 – 4-pin – elbowed prewired connector – cable 2 m
Previous product
Placeholder
Non-compensated Bimetallic Thermal Unit Class 20
Back to products
Next product
primary_image
Modular tower light, Harmony XVU, illuminated LED units, blue, 60mm, blinking, IP65, 24V AC DC

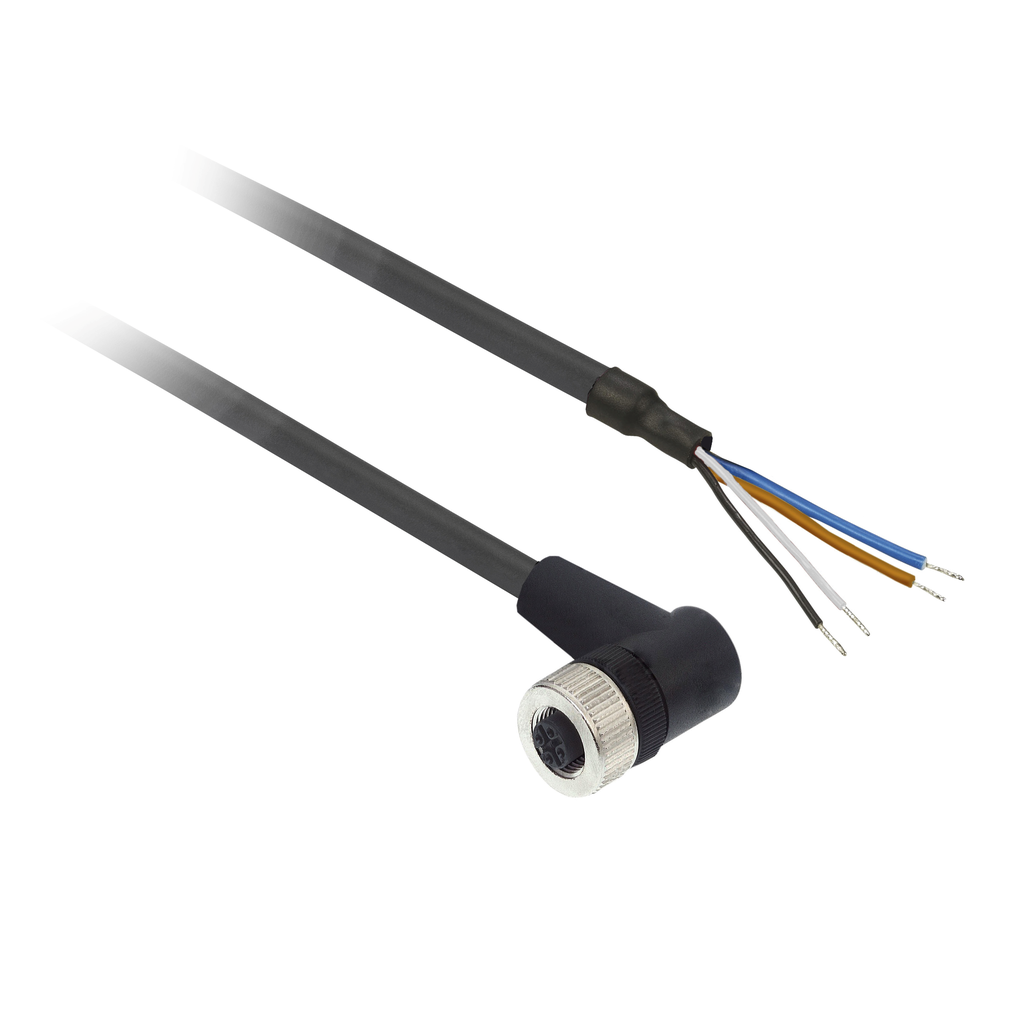

female – M12 – 4-pin – elbowed prewired connector – cable 2 m

female – M12 – 4-pin – elbowed prewired connector – cable 2 m

SKU: 8948811 Category: Automation & Control
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • Reviews (0)
Description

This product is part of the XZ range, an offer of cordsets and connectors. This cable is made up of 4 wires and has a 5 pins M12 elbowed female connector with a metal collar. It is designed in polyurethane for severe industrial environments. Its rated operational voltage is 250V/AC or 300V/DC and its nominal current is 4A. Its contact resistance is 5000µOhm and its minimum insulating resistance is 1GΩ. It is dustproof, resistant to water jets (IP65), can be temporarily immersed in water (IP67), and withstands high pressure and steam cleaning (IP69K). This cable has a length of 2m and a diameter of 5.2mm. It is made up of 4 wires, each section of which is 0.34 mm². Its color is black and its weight is 0.09kg. It is intended for industrial environments thanks to its excellent resistance to extreme temperatures (-35°C to +90°C in operation if the cable remains static). This cable complies with cULus certification. It is compatible with a 5 pins M12 male connector. XZ range includes a wide range of cordsets, connectors, and connection boxes designed for a simple connection process and a quick reference identification.

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “female – M12 – 4-pin – elbowed prewired connector – cable 2 m” Cancel reply

Your email address will not be published. Required fields are marked *
