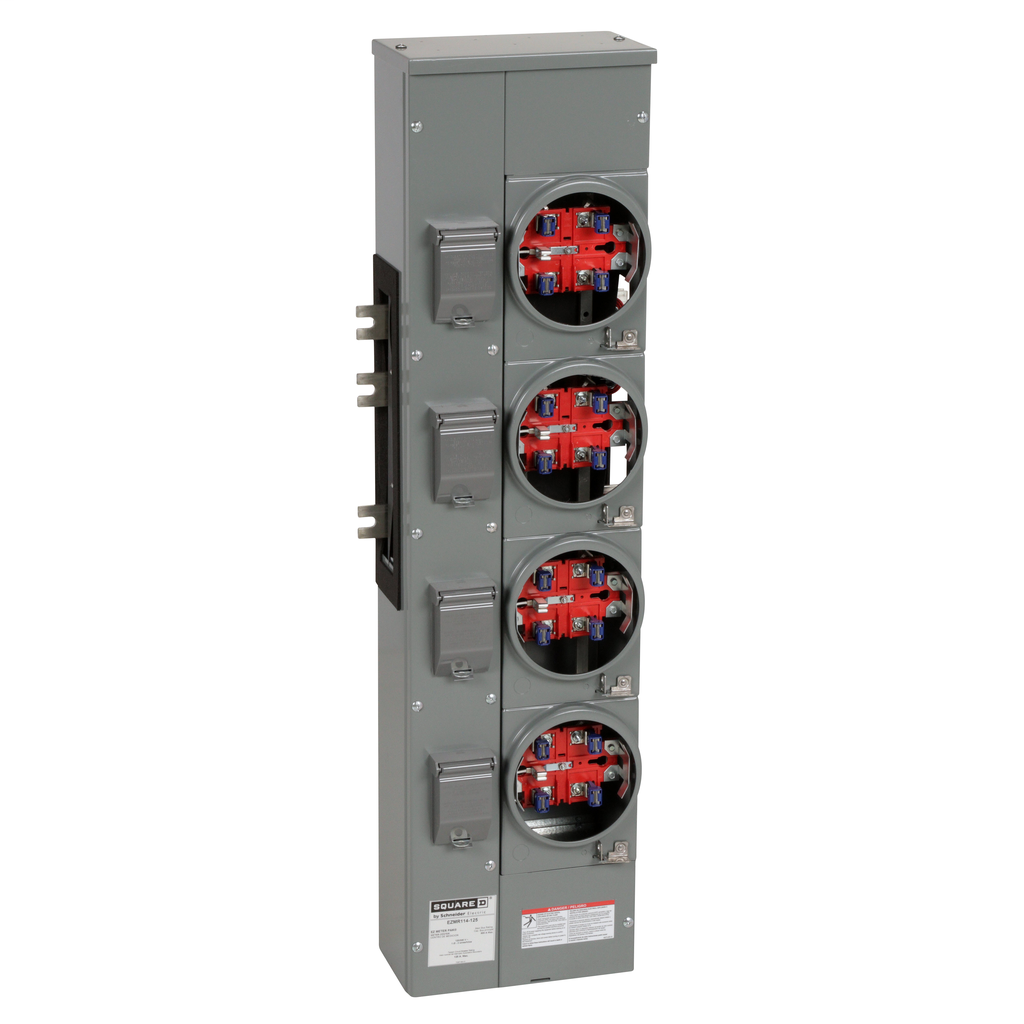

EZ Meter Pak devices are the industry choice for providing a better solution for multi unit construction needs. EZM branch units are supplied with meter sockets and provisions for mounting tenant circuit breakers. These circuit breakers are to feed downstream type QO or HOM load centers or type NQOD panelboards. This EZMR meter center is for a single phase, 3 wire, 120/240 VAC system and has 2P branch circuit breakers. This EZM meter center has 4 ringless sockets without bypass and a 5th jaw. The aluminum main bus ampacity is 800 A. The maximum tenant circuit breaker amperage is 125 A with a 240 VAC single phase maximum. This unit has a NEMA 3R surface mounting enclosure that is 48.12 inches tall, 12.25 inches wide and 7.09 inches deep. This EZMR meter center unit is UL listed.
EZ Meter Pak, branch, 4 ringless sockets without bypass, 5 jaws, 800 A main, 125 A, 240 VAC single phase 3W
EZ Meter Pak, branch, 4 ringless sockets without bypass, 5 jaws, 800 A main, 125 A, 240 VAC single phase 3W
