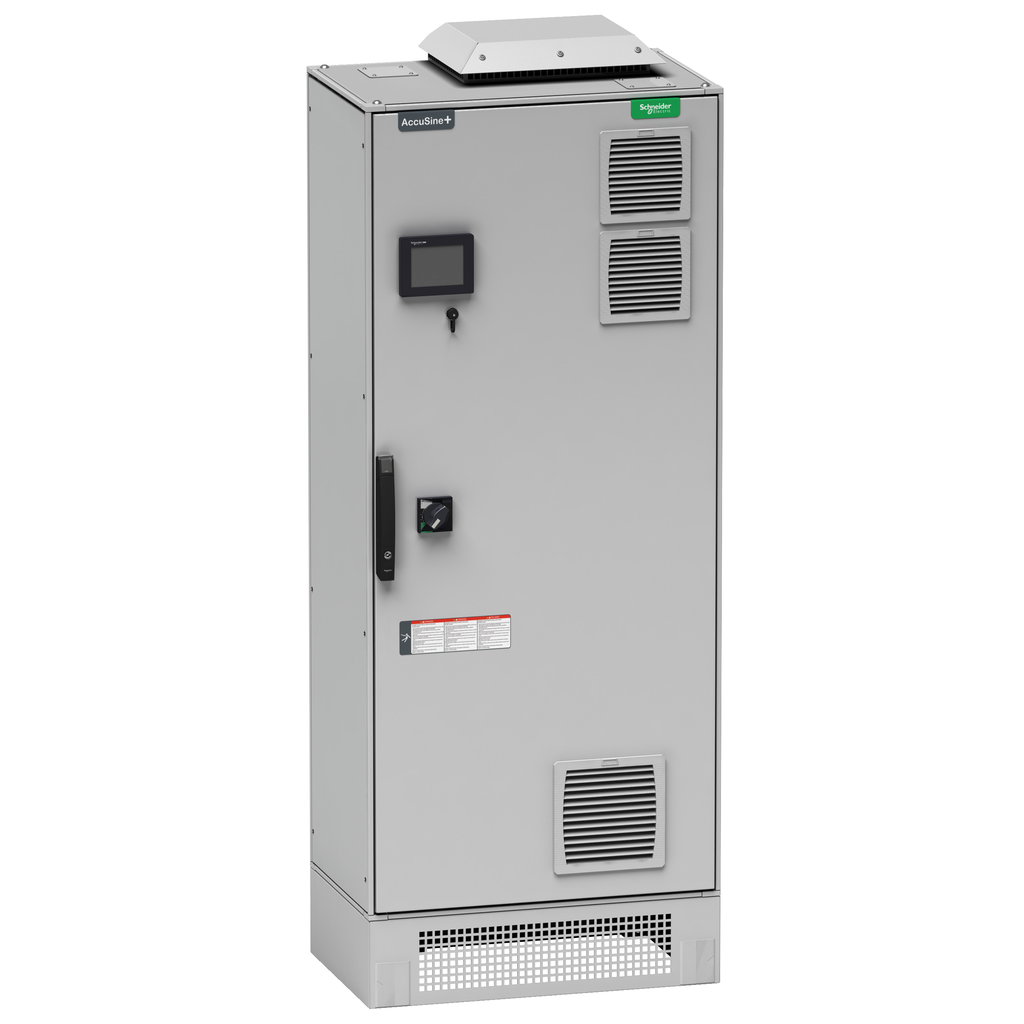

This hardware is an active power correction solution, from AccuSine familly, to help stabilize electrical networks by providing swift power factor correction and load balancing. It is specifically designed for harsh electrical conditions, for heavy industrial applications including mission critical environments. This version is UL Type 12, close to ingress protection IP54, and can be connected on Low Voltage networks rated 380 Volt to 480 Volt. It is specified for a standard Root Mean Square output current rating of 60 Amps. The enclosure is floor standing, allow cable entry from top or bottom and is delivered in RAL7035 light grey. This active power filter which achieves above standards performance is certified to CE, UL, IBC 2015 AC156, EAC, RCM. And is designed to IEC 62477-1, IEC 61000-6-2, IEC 61000-6-4, IEC 61439-1, UL508 and IEEE 519-2014. Up to 10 units of different ratings can be paralleled, to achieve a maximum VAR injection of 2500 kVar either leading or lagging per current transformer set. Frame exterior dimensions are 800 millimetres in width, 500 millimetres in depth, 2100 millimetres in height and product weight 291 kg.
Electronic VAR control 60 amp 380-480 VAC N12 Enclosure
Electronic VAR control 60 amp 380-480 VAC N12 Enclosure
SKU: 9181562
Category: Enclosures
