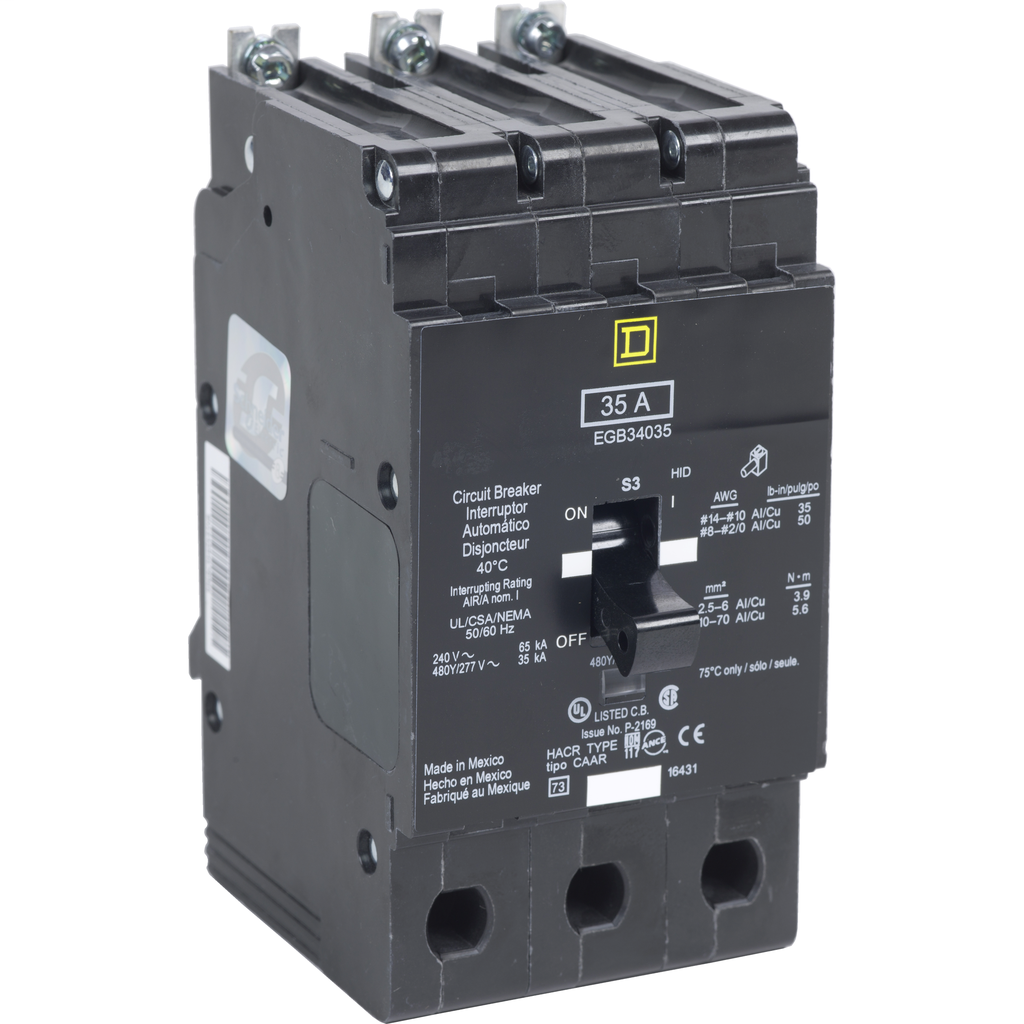

E Frame thermal magentic circuit breakers are for use in NF panelboards. These circuit breakers will protect against overload and short circuit conditions. Breakers have a trip indicator. This bolt on circuit breaker has a maximum voltage rating of 480Y/277 VAC. This 3 pole 35 A breaker is rated for HACR and HID applications. Breaker has a breaking capacity of 35 kA at 480Y/277 VAC. Circuit breaker has other breaking capacity ratings based on operting voltage. The breaking capacity code for this circuit breaker is G. Electrical connections are made using aluminum lugs. The lugs on this circuit breaker will accept 14 AWG to 2/0 AWG copper and 12 AWG to 2/0 AWG aluminum wire. Three spaces are used by this circuit breaker. Circuit breaker is 5.66 inches tall, is 2.94 inches wide and 4.05 inches deep. E frame circuit breakers are UL Listed and CSA certified.
Mini circuit breaker, E-Frame, 35A, 3 pole, 480Y/277 VAC, 65 kA max, bolt on
Mini circuit breaker, E-Frame, 35A, 3 pole, 480Y/277 VAC, 65 kA max, bolt on
SKU: 1338523
Category: Circuit Breakers
Reviews (0)
Be the first to review “Mini circuit breaker, E-Frame, 35A, 3 pole, 480Y/277 VAC, 65 kA max, bolt on” Cancel reply
