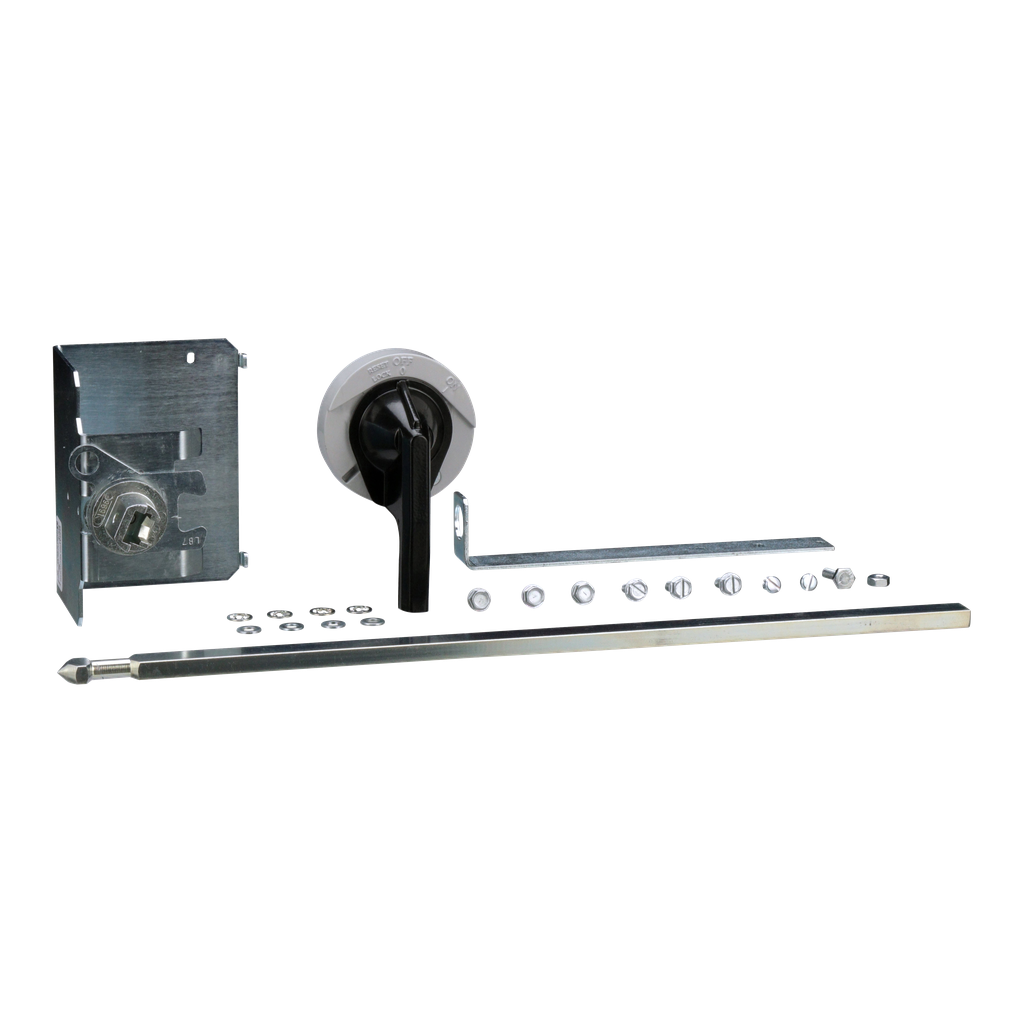

Type L door mounted, variable depth operating mechanisms feature heavy duty, all metal construction with trip indication. Operating mechanism can be padlocked in the Off position when the enclosure door is open. Handle assemblies can be locked Off with up to three padlocks, which also locks the door closed Mechanism will work with PowerPact H and PowerPact J and Compact NSF circuit breakers. Circuit breakers can be 2 or 3 pole with a frame size of 250A. Proper circuit breaker must be ordered separately. Kit contains a 3 inch long handle that is rated NEMA 1/3R/12. The kit contains a long shaft. The mounting depth of this kit is 5.5 to 21.38 inches from the circuit breaker mounting surface, control panel, to outside of enclosure door. Kit is UL component recognized and CSA certified.
Circuit breaker accessory, PowerPacT H/J, handle kit, rotary, 3 inch, 150A to 250A, operating mechanism, 3 pole, long shaft
Circuit breaker accessory, PowerPacT H/J, handle kit, rotary, 3 inch, 150A to 250A, operating mechanism, 3 pole, long shaft
SKU: 1442162
