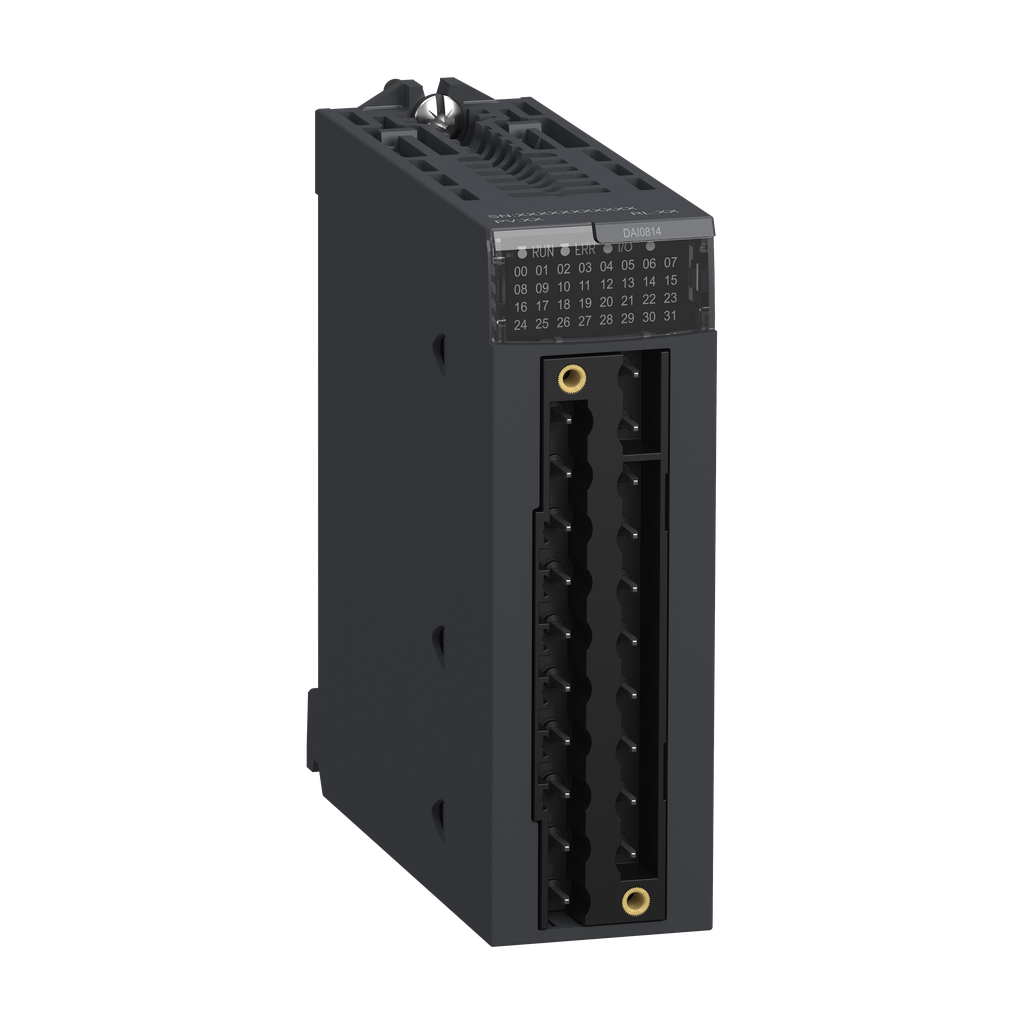

discrete input module, Modicon X80, 8 inputs, 100 to 120V AC

discrete input module, Modicon X80, 8 inputs, 100 to 120V AC

SKU: 2976496 Category: Automation & Control
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • Reviews (0)
Description

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This discrete input module has 8 capacitive inputs. It is an input module with an input voltage of 100V AC to 120V AC, a current consumption of 90mA at 3.3V DC and a power dissipation of 2.35W. There is an isolation between channels. This product is robust, high quality and based on the latest innovative technology. It has an external fuse per channel 0.25A fast blow protection type. It offers 1700000 hours of MTBF. It is an IP20 rated product. It weighs 0.115kg. It is suitable for medium to large process applications. This product is certified by EAC, RCM, UL, CSA, Merchant Navy, CE. It meets IEC 61131-2, CSA C22.2 No 142, CSA C22.2 No 213 and UL 508 standards. This input module is compatible with 2-wire/3-wire proximity sensors conforming to IEC 60947-5-2. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “discrete input module, Modicon X80, 8 inputs, 100 to 120V AC” Cancel reply

Your email address will not be published. Required fields are marked *
