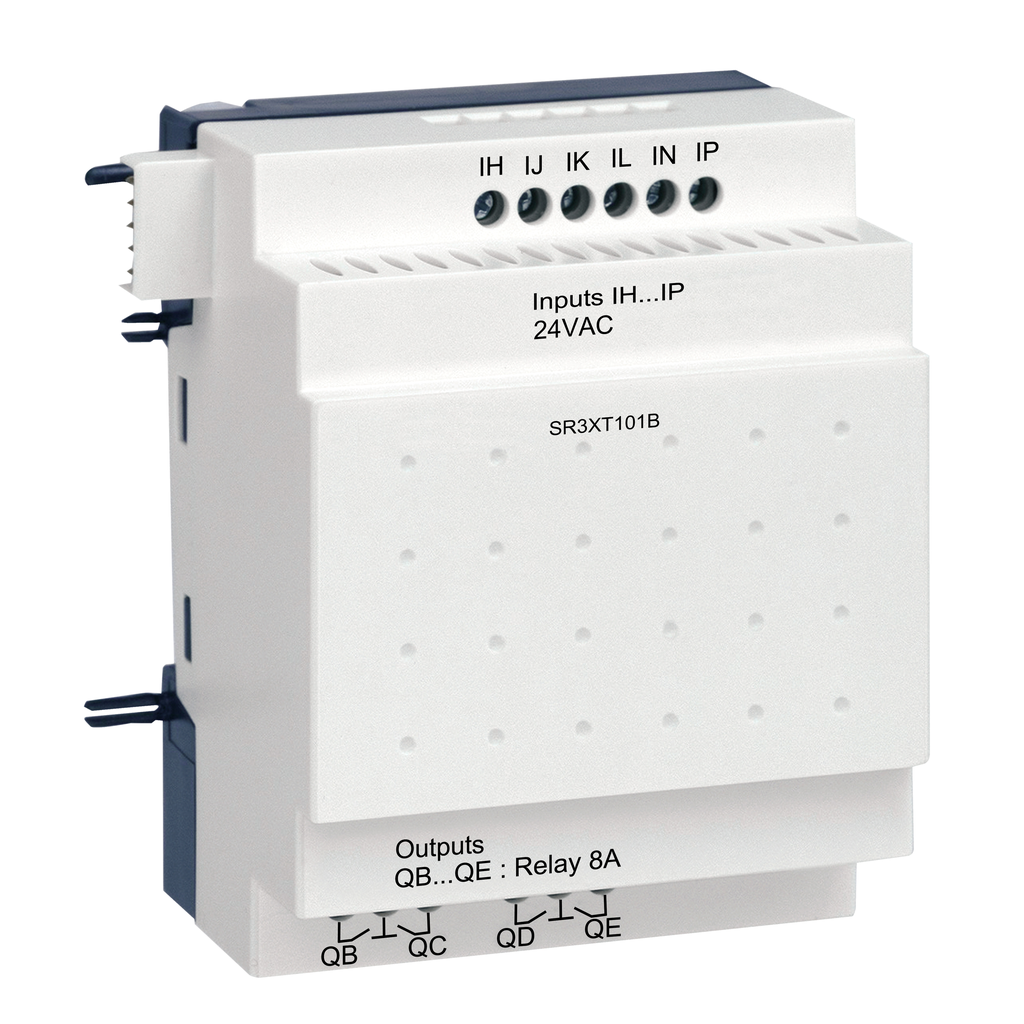

This Schneider Electric Zelio Logic SR3 Discrete I/O Extension Module Smart Relays uses a supply voltage of 24 volts alternating current, has 10 inputs / outputs contact with screw-clamp terminals. This Discrete I/O Extension Module Smart Relays provides Zelio Logic relays with additional inputs and outputs. It has a compact form-factor, allowing installation on DIN rail. Simple ladder programming, adapted for non-specialists. Discovery package, coming with Zelio Soft programming software, the simplest way to learn and use this relay. Built-in EEPROM flash memory for data backup up to 10 years, easy-to-recover after a power shortage or incident. More I/O than SR2 model, for larger applications. The main application of this module is industry and building/service sector. This product is certified by C-Tick, GL, UL, CSA and GOST. It meets EN/IEC 61000-4-2 L3, EN/IEC 61000-4-5, EN/IEC 61000-4-6 L3 and EN/IEC 60068-2-6 Fc standards. Easy to use, Zelio Logic provides a real alternative solutions based on cabled logic or specific cards.
discrete IO extension module, Zelio Logic SR2 SR3, 10 IO, 24V AC
discrete IO extension module, Zelio Logic SR2 SR3, 10 IO, 24V AC
SKU: 503498
Category: Automation & Control
Reviews (0)
Be the first to review “discrete IO extension module, Zelio Logic SR2 SR3, 10 IO, 24V AC” Cancel reply
