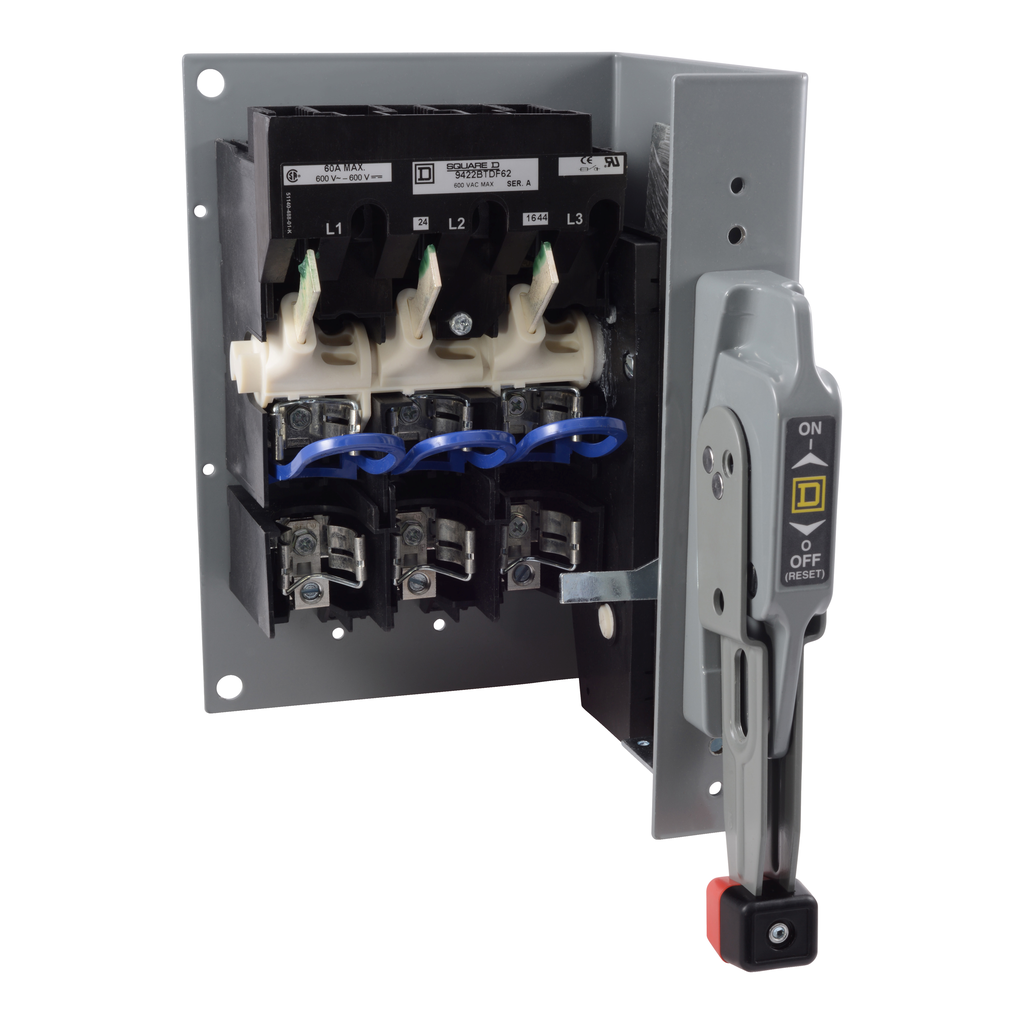

Bracket mount disconnect switches are designed for combiner boxes and control panel applications. The bracket mount disconnect switch is shipped with the switch and external handle assembled to a bracket, ready for quick installation. A protective trim plate is provided to prevent any mounting screws from being accessible from the front. These switches are fully compatible with the 9423 closing mechanisms. This disconnect switch is without fuse clips. This bracket mount mount disconnect switch is rated at 60 A. Disconnect switch has horsepower ratings of 15 HP at 208 VAC, 15 HP at 240 VAC, 30 HP at 480 VAC and 50 HP at 600 VAC. Switch is also rated for 10 HP at 600 VDC. Disconnect switch lugs are rated for #14 AWG to #2 AWG copper or aluminum wire. Switch is UL component recognized and CSA certified.
Operating mechanism, flange mounted, fixed depth assembly,60A, 600 V, fuseholder, switch mechanism, 6 inch handle
Operating mechanism, flange mounted, fixed depth assembly,60A, 600 V, fuseholder, switch mechanism, 6 inch handle
SKU: 15459920
Category: Disconnect Switches
