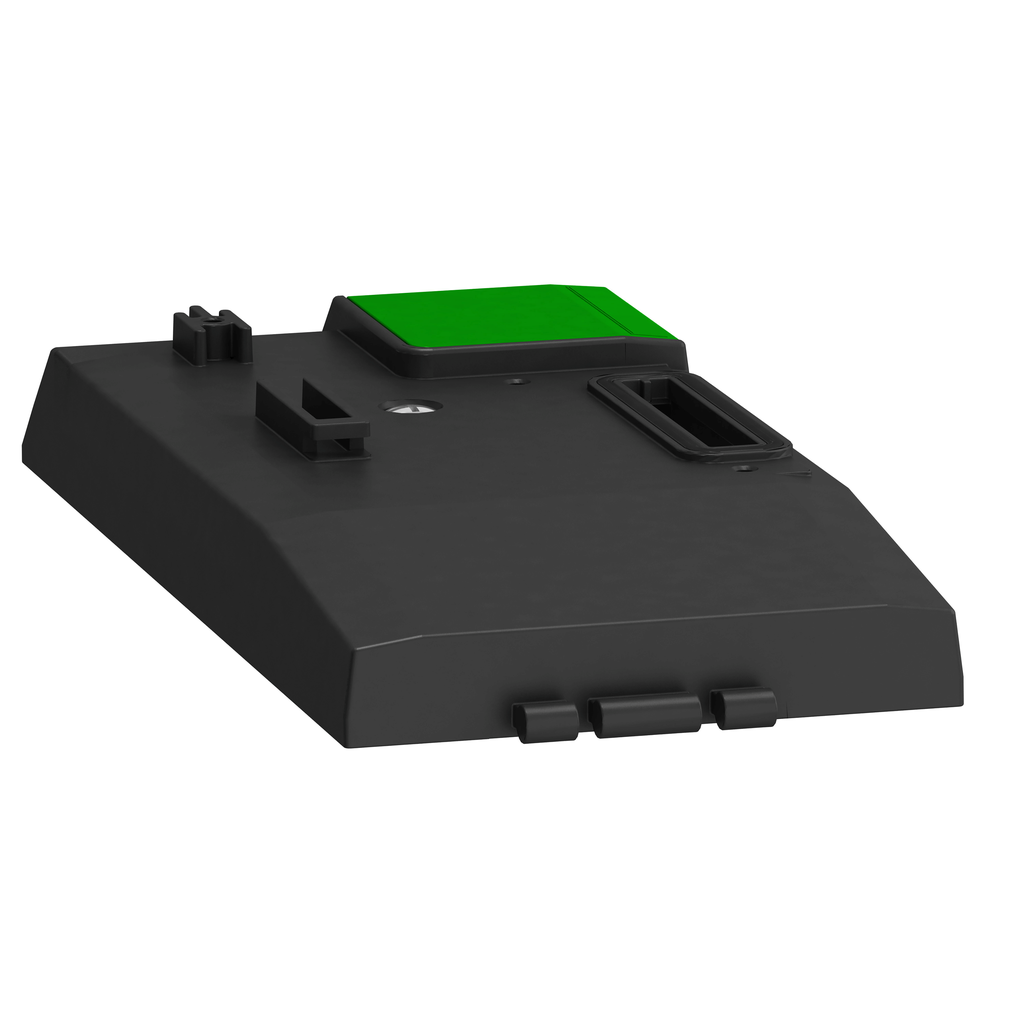

This product is part of the Lexium 32i range, an offer of control units for integrated servo drive from 0.6kW to 2.2kW. This control unit offers 2 safety discrete inputs, 4 logic discrete inputs and 2 positive or negative logic outputs. It is furnished with RJ45 for Modbus and M12 for Profinet connectors. It is a control unit with a discrete input voltage of 24V DC and a discrete output voltage of 30V DC. Signals are controlled by servo motor encoder feedback. It is an IP65 rated product. It weighs 0.63kg. The Lexium 32i is the perfect drive for applications involving high-precision, dynamic positioning such as material handling, material working, packaging and printing. This product is certified by CSA, TUV and UL. It meets EN/IEC 61800-3 and EN/IEC 61800-5-1 standards. Lexium BMI servo motors are available in 2 flange sizes and 2 different lengths, a continuous torque range from 1.7Nm to 7.2Nm for speeds up to 4700RPM. Lexium 32i integrated servo drive from 0.6kW to 2.2kW is designed for application areas requiring high precision and advanced motor control.
Control unit, Lexium 32i, LXM32i, PROFINET
Control unit, Lexium 32i, LXM32i, PROFINET
SKU: 5068531
Category: Motion Control
