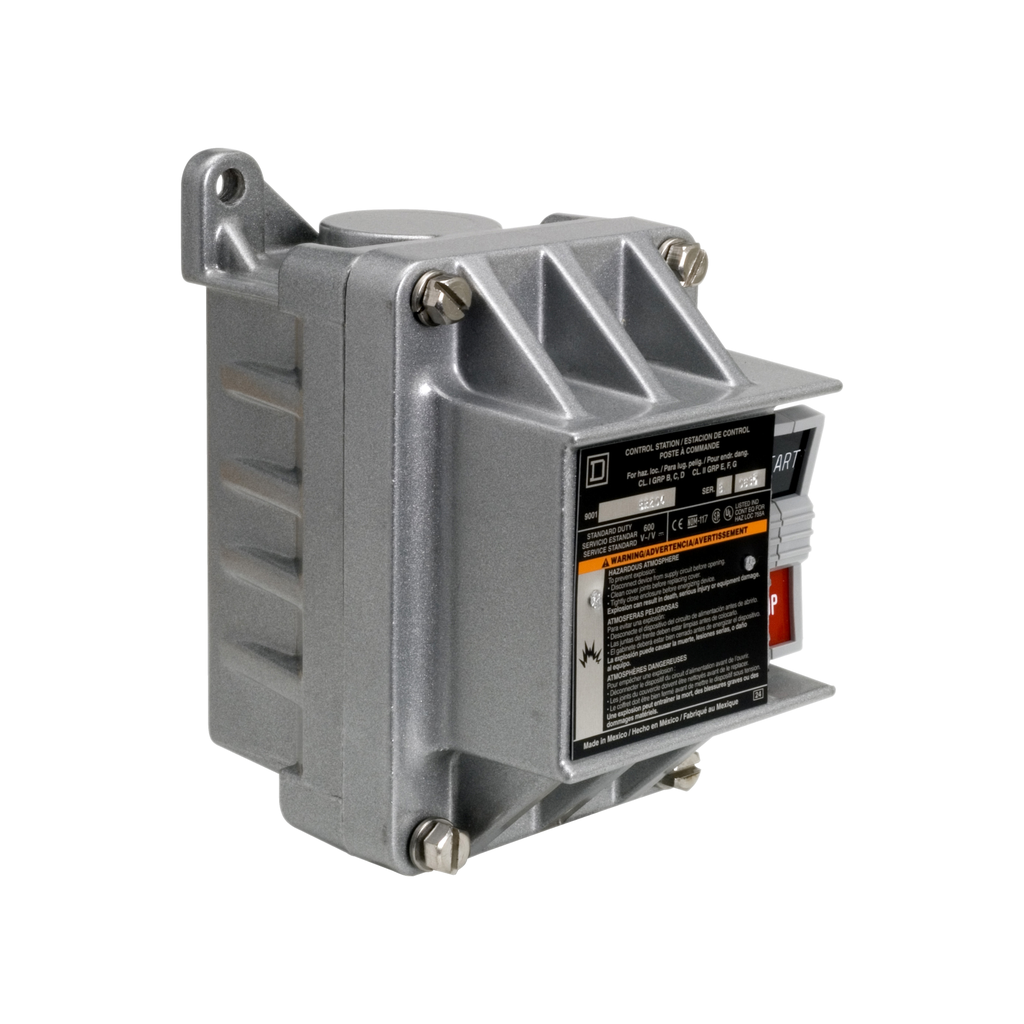

These standard duty control stations come complete with an enclosure, operators and contacts. This control station has a external toggle to operate the two momentary push buttons inside. It has a START push button with a normally open contact. It has a STOP push button with a normally closed contact. The STOP push button has a lockout on it. This NEMA 7/9 hazardous location control station is surface mounted. The push button contacts are standard duty rated. The contacts have a B600 rating. That is a break rating of 360 VA for a inductive load with a 35% power factor or 5A resistive. The contacts also have a P600 rating for DC loads. Classic screw clamp connections are used to connected to control circuits. Control station is UL Listed and CSA certified.
Complete control station, Harmony 9001B, 2 push buttons START-STOP, with lockout, 5A, 600V AC, 1NO + 1NC NEMA 7/9
Complete control station, Harmony 9001B, 2 push buttons START-STOP, with lockout, 5A, 600V AC, 1NO + 1NC NEMA 7/9
SKU: 14611278
Category: Automation & Control
Reviews (0)
Be the first to review “Complete control station, Harmony 9001B, 2 push buttons START-STOP, with lockout, 5A, 600V AC, 1NO + 1NC NEMA 7/9” Cancel reply
