HomeMolded Case Breakers Circuit breaker, PowerPacT H, 150A, 3 pole, 600VAC, 18kA, busbar, Micrologic 3.2, 100%, black rotary handle
Previous product
primary_image
Meter mains, QO, CSED, ringless socket, 200A, outdoor surface mount, maximum 8 spaces, 16 circuits, no bypass
Back to products
Next product
primary_image
Motion controller LMC802 130 axis - Acc kit - 2x OM RT-Ethernet

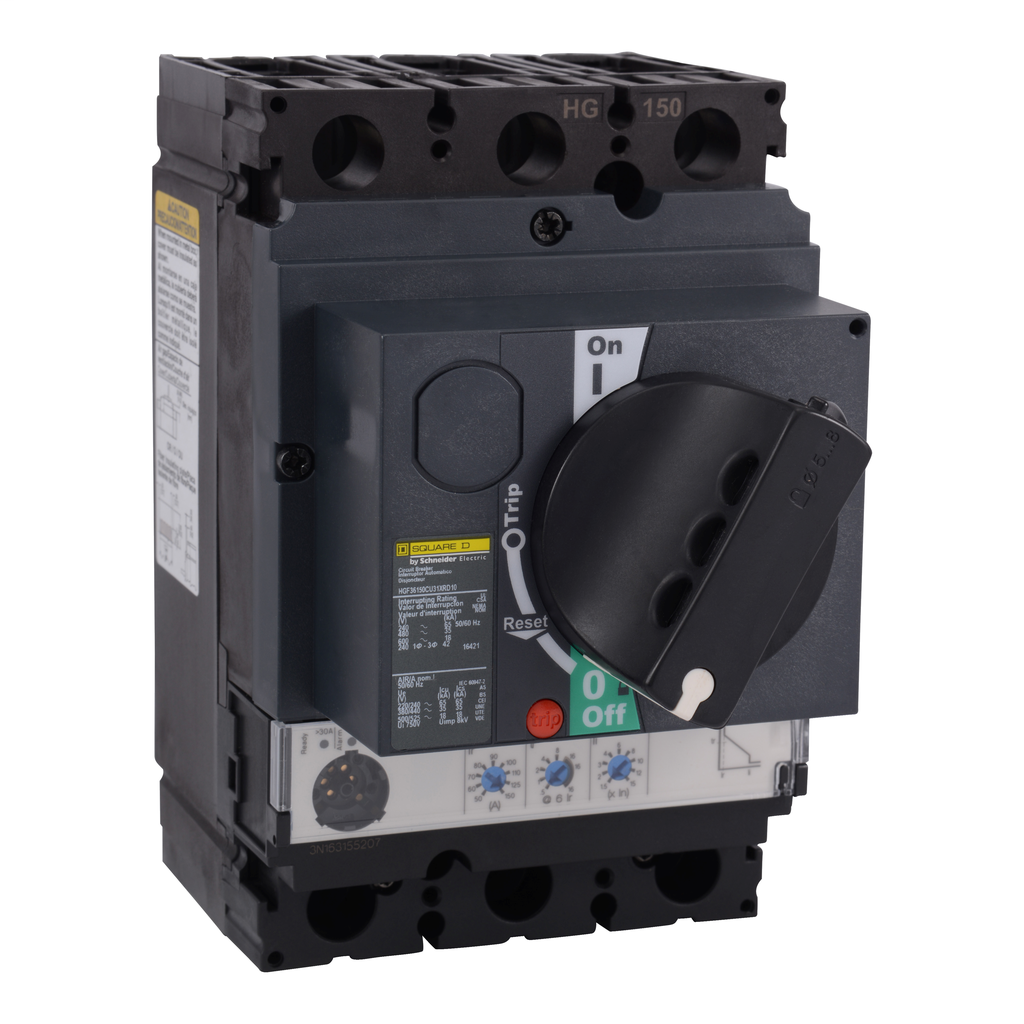

Circuit breaker, PowerPacT H, 150A, 3 pole, 600VAC, 18kA, busbar, Micrologic 3.2, 100%, black rotary handle

Circuit breaker, PowerPacT H, 150A, 3 pole, 600VAC, 18kA, busbar, Micrologic 3.2, 100%, black rotary handle

SKU: 2893596 Category: Molded Case Breakers
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • Reviews (0)
Description

PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides Micrologic Standard with a 3.2 trip unit and an LI function with a breaking capacity of 18kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has a busbar connection. This PowerPacT H, 150A, 3 pole, circuit breaker has a breaking capacity of 18kA at 600VAC. This circuit breaker has a continuous current rating of 100%. This unit includes a black rotary handle. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Circuit breaker, PowerPacT H, 150A, 3 pole, 600VAC, 18kA, busbar, Micrologic 3.2, 100%, black rotary handle” Cancel reply

Your email address will not be published. Required fields are marked *
