HomeCircuit Breakers Circuit breaker, LA, 125A, 3 pole, 600VAC, 22kA, 250VDC, I-Line mount, thermal magnetic
Previous product
primary_image
Auxiliary contacts, TeSys GS, 1NC+1NO, instantaneous, left side mounting, for GS1 and GS2 with front/right handle
Back to products
Next product
primary_image
Terminal cover, TeSys GS, 3P, 630A

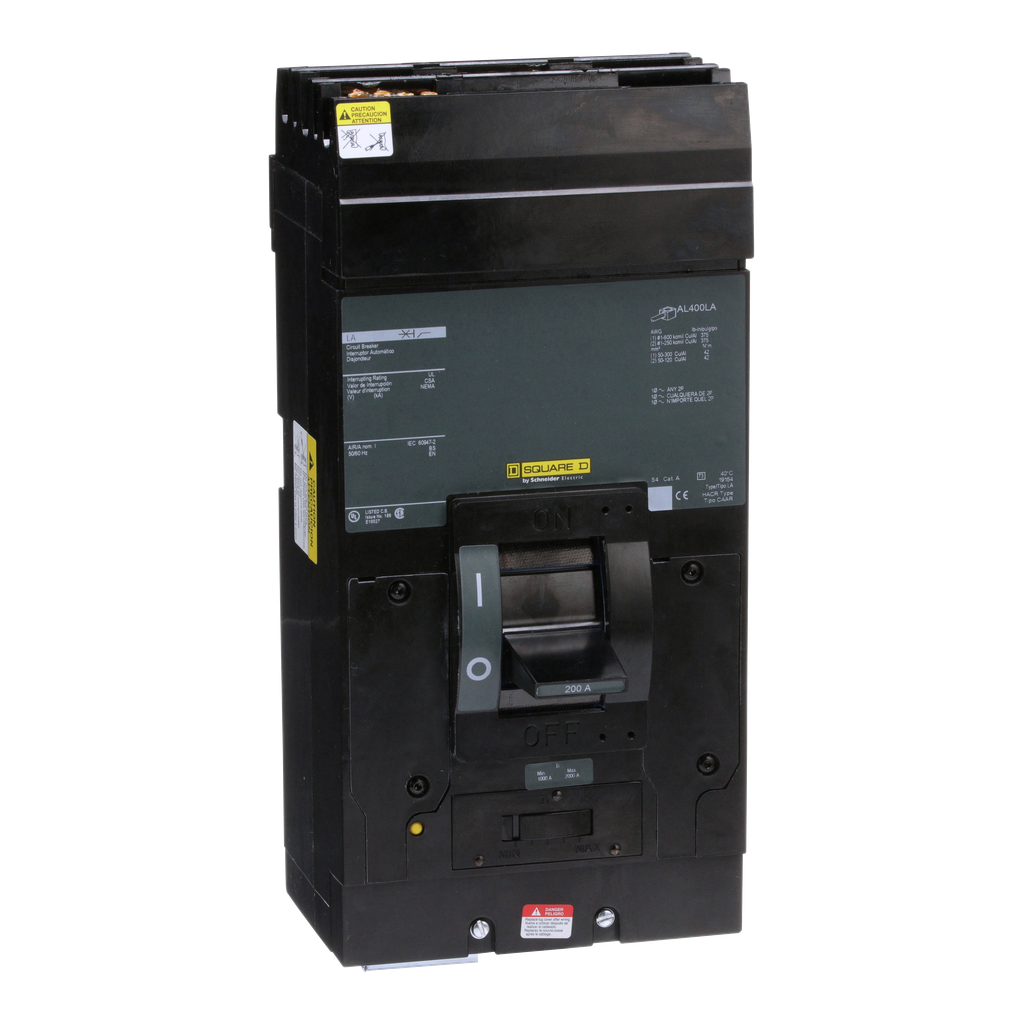

Circuit breaker, LA, 125A, 3 pole, 600VAC, 22kA, 250VDC, I-Line mount, thermal magnetic

Circuit breaker, LA, 125A, 3 pole, 600VAC, 22kA, 250VDC, I-Line mount, thermal magnetic

SKU: 8959715 Category: Circuit Breakers
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • Reviews (0)
Description

Square D LA molded case circuit breakers provide basic thermal magnetic protection. Their primary functions are to provide a means to manually open a circuit and automatically open a circuit under overload or short circuit conditions. LA circuit breaker could be used for muliple applications such as construction, in commercial and industrail buildings, for control equipment panels for OEM commercial and even in mines. This 3 poles I-line plug in circuit breaker is equiped with thermal magnetic trip unit with rated current of 125A and voltage of 600VAC. Breaker has an interrapting rating as 22kA at 600VAC, 10kA at 250VDC All LA molded case circuit breakers have trip indication as operating handle being in central position when the breaker is tripped. This circuit breakers are commonly used in I-line combo panel with terminal wire range for AL400LA as 1 wire AWG 1 to 600 kcmil or 2 wires AWG 1 to 250 kcmil aluminium or coopper. LA breakers are UL 489, CSA, IEC certified.
