Square D PowerPact H-, J-, and L-frame circuit breakers are designed to protect electrical systems, are designed with Micrologic and thermal magnetic trip units. The optional BSCM Breaker Status & Control Module is used to acquire device status indications and control the communicating remote-control function. It includes a memory used to manage the maintenance indicators. The BSCM can be used to carry out communicating remote control operations using the communicating motor operator (open, close and reset) in different modes (manual, auto) The BSCM can be installed on all PowerPact H-, J-, and L-frame circuit breakers and automatic switches with Micrologic trip units. The BSCM is supplied with 24 Vdc power automatically through the NSX cord when the communication network is installed. It simply clips into the auxiliary contact slots. It occupies the slots of one auxiliary switch (OF) and one overcurrent trip switch (SDE).

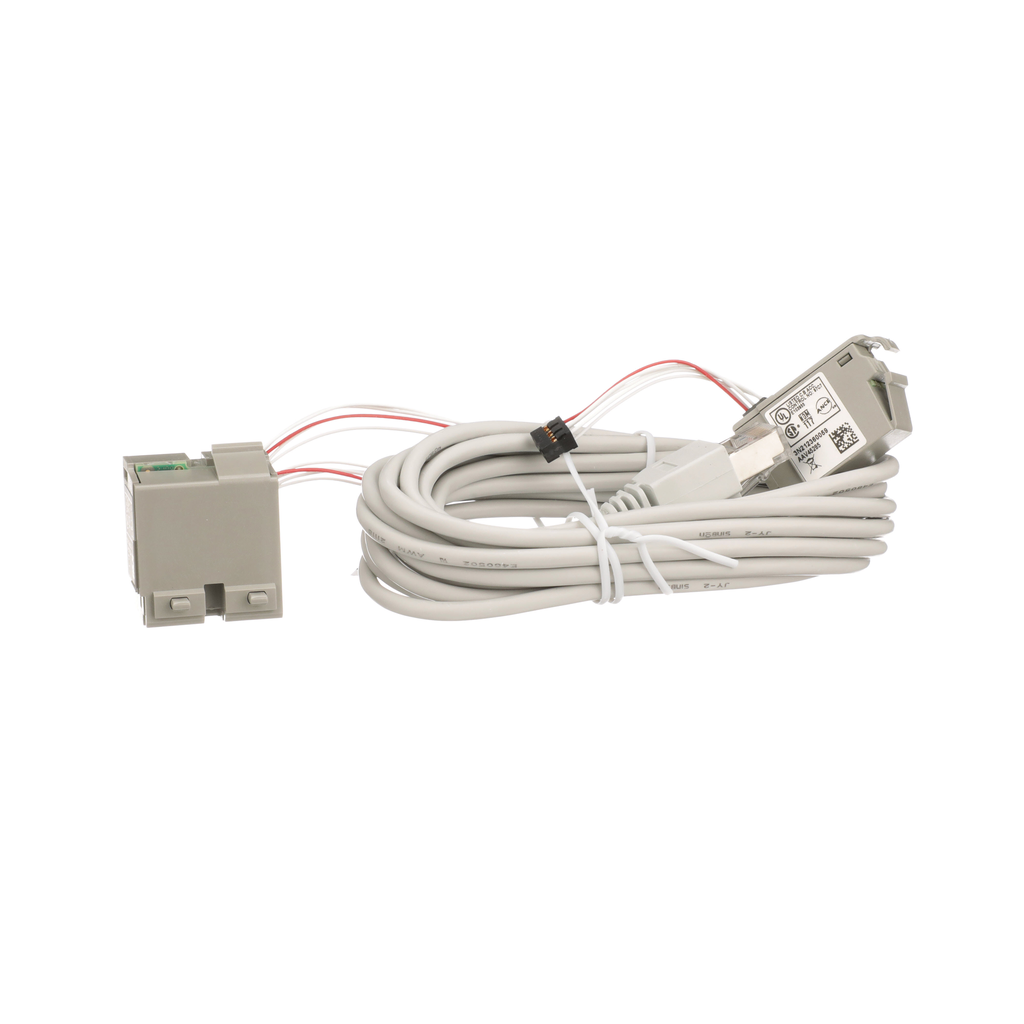

Circuit breaker accessory, PowerPacT H/J/L, Micrologic, BSCM with NSX cord, length 3m, less than 480V
Circuit breaker accessory, PowerPacT H/J/L, Micrologic, BSCM with NSX cord, length 3m, less than 480V
