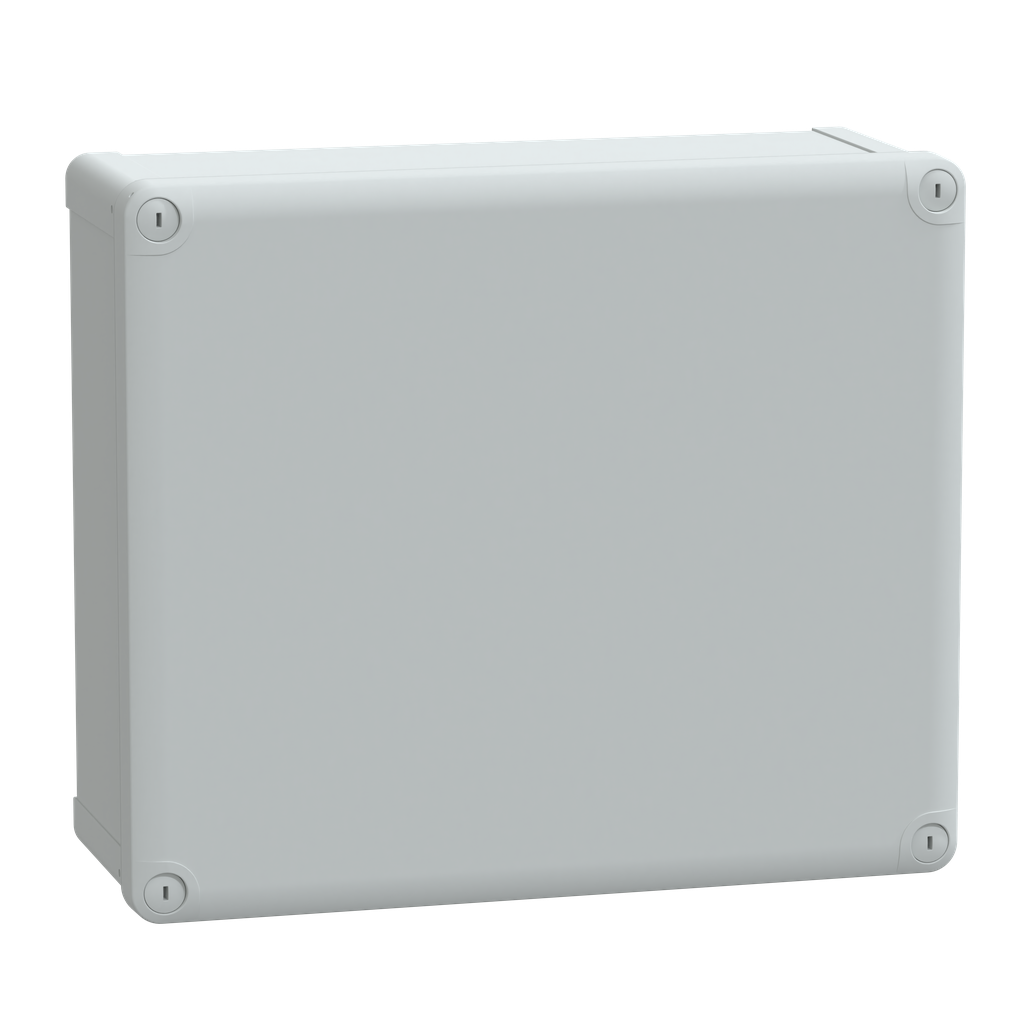

The Thalassa TBS industrial ABS box with opaque cover H20 is designed for multi-purpose application. The external dimensions are (H) 341 mm x (W) 291 mm x (D) 128 mm and the internal dimensions are (H) 325 mm x (W) 275 mm x (D) 120 mm. The cover is fixed by removable plastic captive screw that are flat outside the sealed area. The box is made of ABS (acrylonitrile butadiene-styrene) and offers IP66 protection against dust and water, IK07 hard impact resistance, 650°C glow wire resistance and class II insulation. The installation temperature is -15 °C to 40 °C and the operating temperature is -25 °C to 60 °C. This product is IEC 62208 certified and is qualified as green premium, with minimal use of hazardous substances.
ABS box IP66 IK07 RAL7035 Int.H325W275D120 Ext.H341W291D128 Opaque cover H20
ABS box IP66 IK07 RAL7035 Int.H325W275D120 Ext.H341W291D128 Opaque cover H20
SKU: 505137
Category: Enclosures
