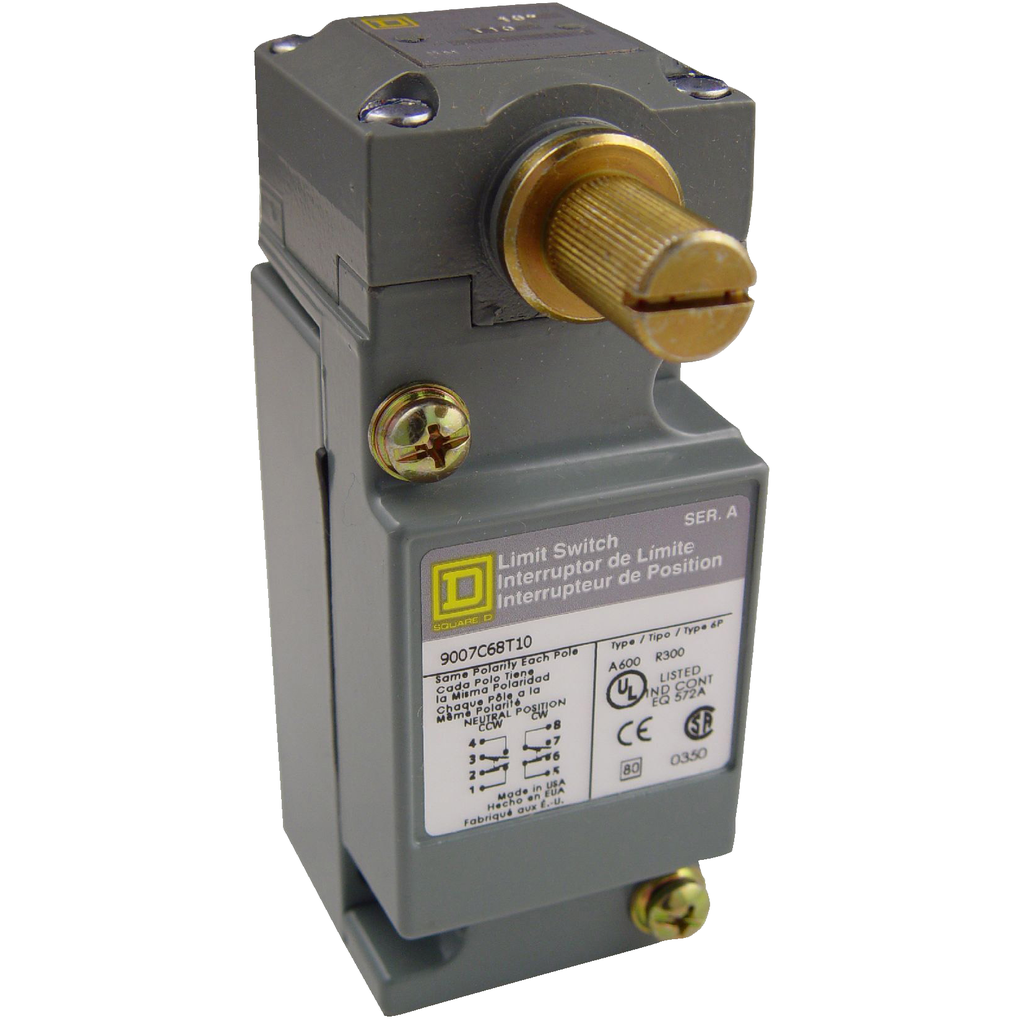

This product is part of the Nema Limit Switches range. This limit switch is a device that converts a mechanical motion into an electrical control signal. It has 2 NC and NO, 2 single pole double throw, double break, form Z, snap action contacts. It provides switch actuation of CCW to CW. The limit switch has a spring return without operating lever, supports lateral approach in 2 directions. The movement of operating head is rotary. It is a limit switch with a rated voltage of 600V AC and rated operating current of 10A. It is furnished with screw clamp terminals for electrical connection. It is an IP67 and NEMA 1/2/4/6/6P/12/13 rated product. This rotary head limit switch has a plug-in body, made of zinc. Its dimensions are 39.37mm (width) x 63.5mm (depth) x 102.11mm (height). It weighs 0.57kg. The 9007C heavy duty metal limit switches, compact and standard, with 39mm plug-in bodies or 69mm fixed body for hazardous locations. The 9007 series limit switches are designed to withstand harsh industrial environments and are available in a wide range of options.
Limit switch, 9007, 9007C 2 NO/NC neutral, rotary head, CW+CCW, standard
Limit switch, 9007, 9007C 2 NO/NC neutral, rotary head, CW+CCW, standard
SKU: 2893243
Category: Sensors & Switches
Reviews (0)
Be the first to review “Limit switch, 9007, 9007C 2 NO/NC neutral, rotary head, CW+CCW, standard” Cancel reply
