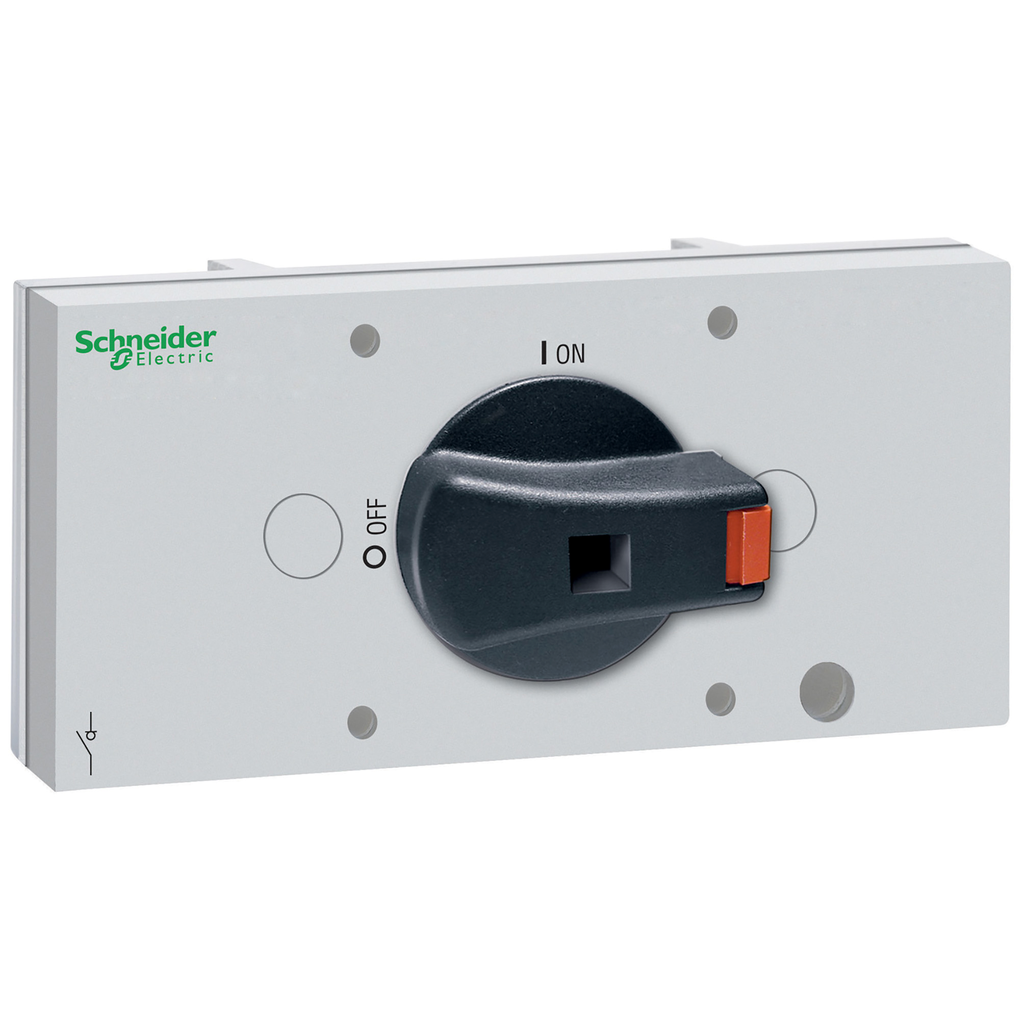

These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This mechanical interlock is used with two VLS3P030R2, two VLS3P063R2, two VLS3P80R2, two VLSP100R2 or two VLS3P125R2 DIN rail mount switches. Mechanical interlock is supplied with a black handle. Rotary handle will accept one 0.16 in padlock. Interlock is marked 1 – 0 – 2. Mechanical interlock is 1.77 inches tall, 5.51 inches wide and 1.06 inches deep. It weighs 0.17 lbs. This mechanical interlock is cULus Listed and meets IEC 60947-3 requirements.
Disconnect switch, TeSys VLS, interlock for line changeover (I-0-II), size 2, 30A to 125A devices
Disconnect switch, TeSys VLS, interlock for line changeover (I-0-II), size 2, 30A to 125A devices
SKU: 4847306
Category: Circuit & Load Protection
Reviews (0)
Be the first to review “Disconnect switch, TeSys VLS, interlock for line changeover (I-0-II), size 2, 30A to 125A devices” Cancel reply
