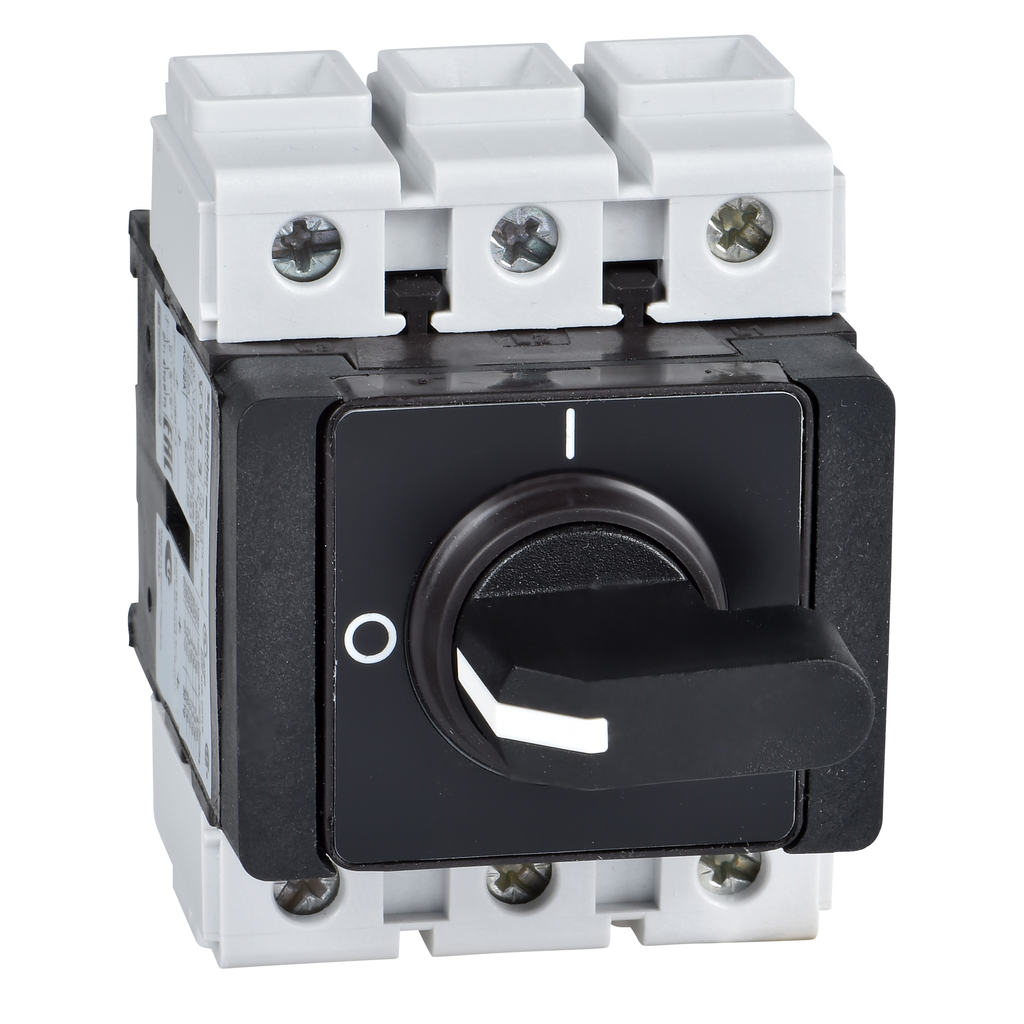

VVD1 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric. Rated 32A 690V, it is used for main switching in motor applications 11KW@400V AC-23. Composed of a V1 switch body, and a black not padlockable handle, and a black 45x45mm front plate. For mounting in modular panels, it ensures IP20 front face. Available worldwide, multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHs/Reach). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Switch disconnector,TeSys Control,for ON/OFF,32A,for mounting at back of an enclosure
Switch disconnector,TeSys Control,for ON/OFF,32A,for mounting at back of an enclosure
