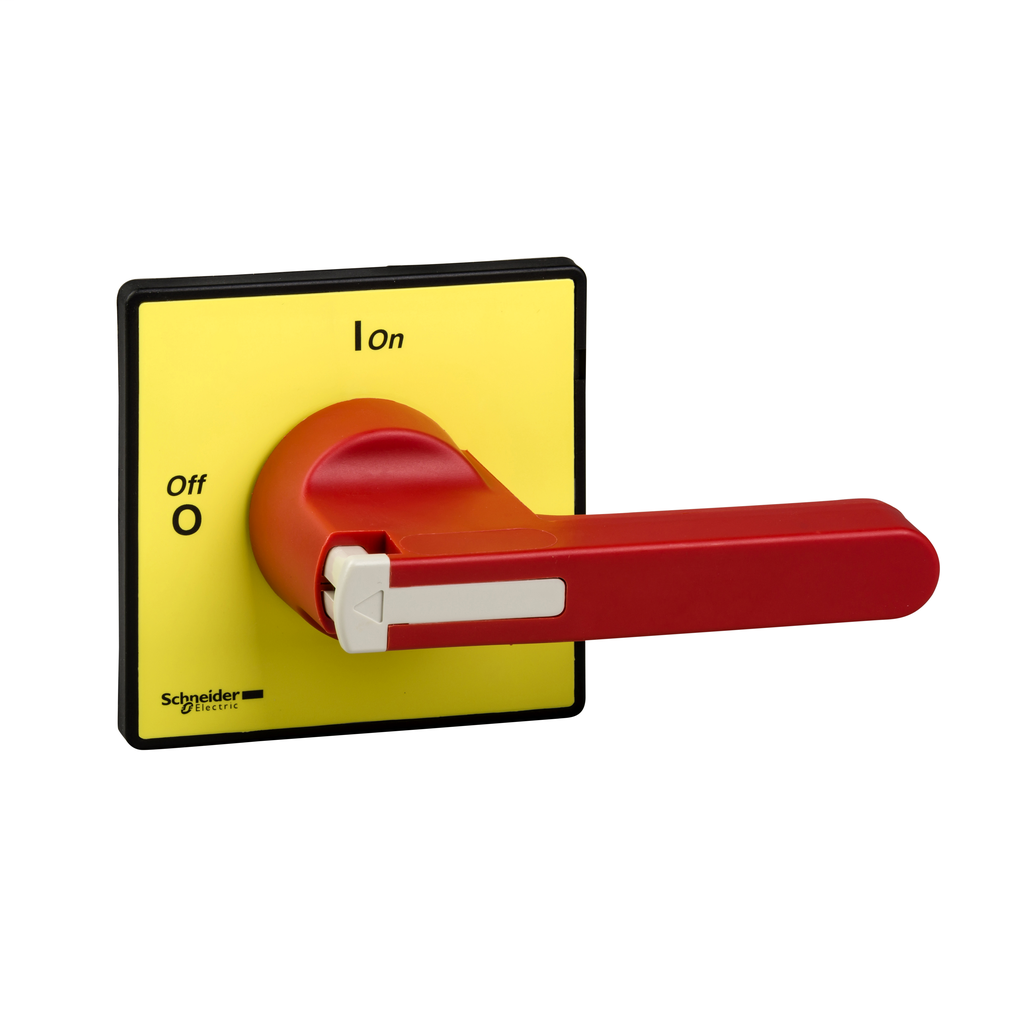

KDF3PZ is an operating handle for TeSys Vario switch-disconnector from Schneider Electric. It provides a red long not padlockable handle with a yellow 90x90mm front plate for mounting on door with 4 screw fixing. It operates V5 and V6 switch bodies directly or through a shaft extension. Intended for main and emergency stop usage, it ensures IP65 to the mounting. Front plate with I-O indicators and with 4 holes fixing, it ensures an IP65 protection (NEMA type 1 and 12) to the mounting. Green Premium compliant (RoHS/REACh).
Handles and front plates,TeSys Control,red handle,yellow front,without padlocking,4 screws fixing
Handles and front plates,TeSys Control,red handle,yellow front,without padlocking,4 screws fixing
