Cuny & Guerber
primary_image
Click to enlarge
HomeDisconnect Switches Switch disconnector,TeSys Control,for ON/emergency stop,32A,4 screws fixing,for mounting on door
Previous product
Placeholder
Water pump switch 9013FY - adjustable diff. - 20-40 psi
Back to products
Next product
primary_image
braking resistor - 10 ohm - 400 W - cable 3 m - IP65

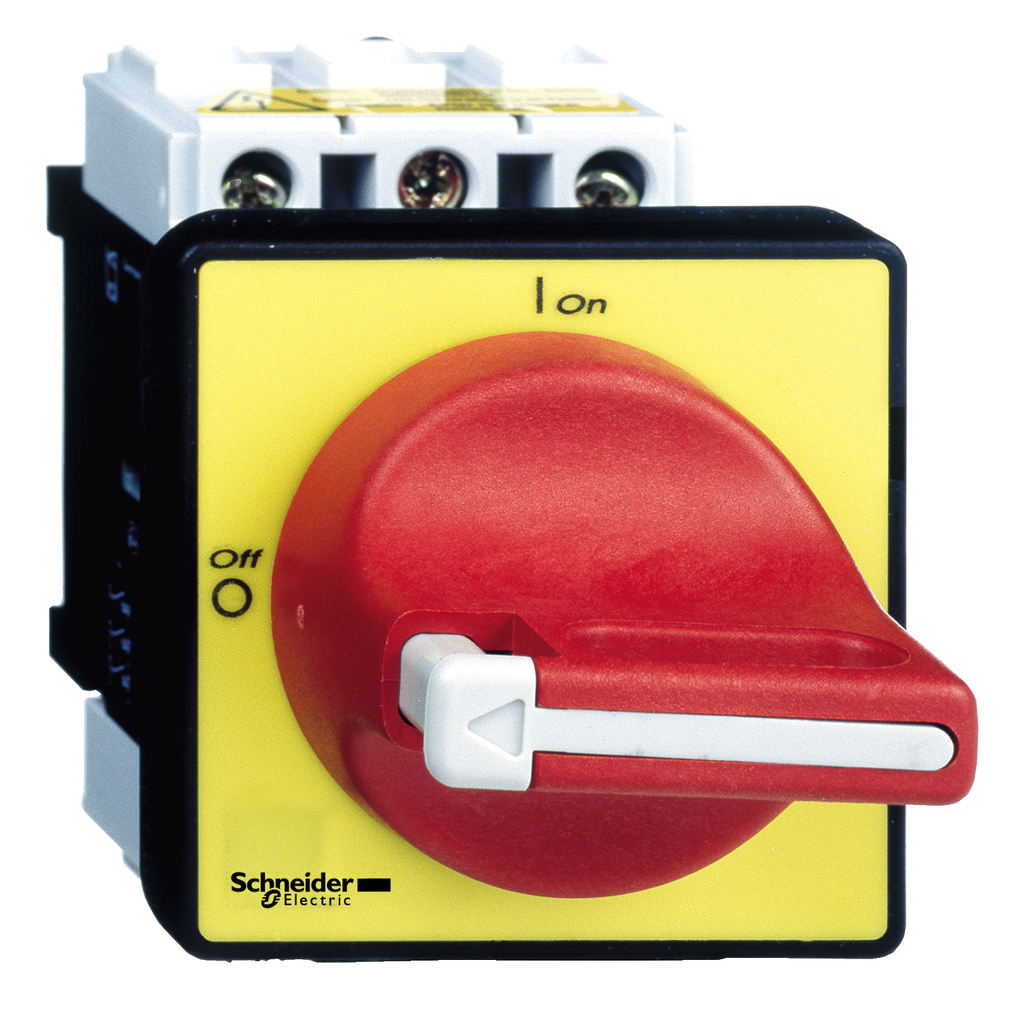

Switch disconnector,TeSys Control,for ON/emergency stop,32A,4 screws fixing,for mounting on door

Switch disconnector,TeSys Control,for ON/emergency stop,32A,4 screws fixing,for mounting on door

SKU: 513918 Category: Disconnect Switches
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • Reviews (0)
Description

VCF1 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for emergency stop switching in motor applications 11KW@400V AC-23. Door mounting with 4 screw fixing, it provides a red & yellow operator with IP65 protection. VCF1 is a 3-pole TeSys Vario switch-disconnector from Schneider Electric for main and emergency stop switching in motor applications 11KW@400V AC-23. It consists of a V1 Vario switch body and a padlockable red & yellow operator to be mounted on door with 4 screws fixing. It ensures an IP65 protection to the mounting. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Vario 3-pole rotary switch disconnector for door mounting. Composed with a switch body V1 and a red & yellow operator, for emergency stop, padlockable. Ensures an IP65 protection to the mounting. Rated for 690V AC operation, DC operation is permitted until 250V, performance depending on the number of contacts in series. Possible attachment of 4 add-on poles (2 in each side) , main (VZ1), neutral (VZ11), earthing (VZ14), auxiliary (VZ7, VZ20).
