HomeNEMA Contactors & Starters Contactor, TeSys K, 3P, AC-3, lt or eq to 440V 9A, 1 NC aux., 110VAC coil
Previous product
Placeholder
NFC cartridge fuses, Tesys GS, cylindrical 14 mm x 51 mm, fuse type aM, 500 VAC, 10 A, with striker
Back to products
Next product
Placeholder
TeSys D control relay - 3 NO + 2 NC - <= 690 V - 440 V DC standard coil

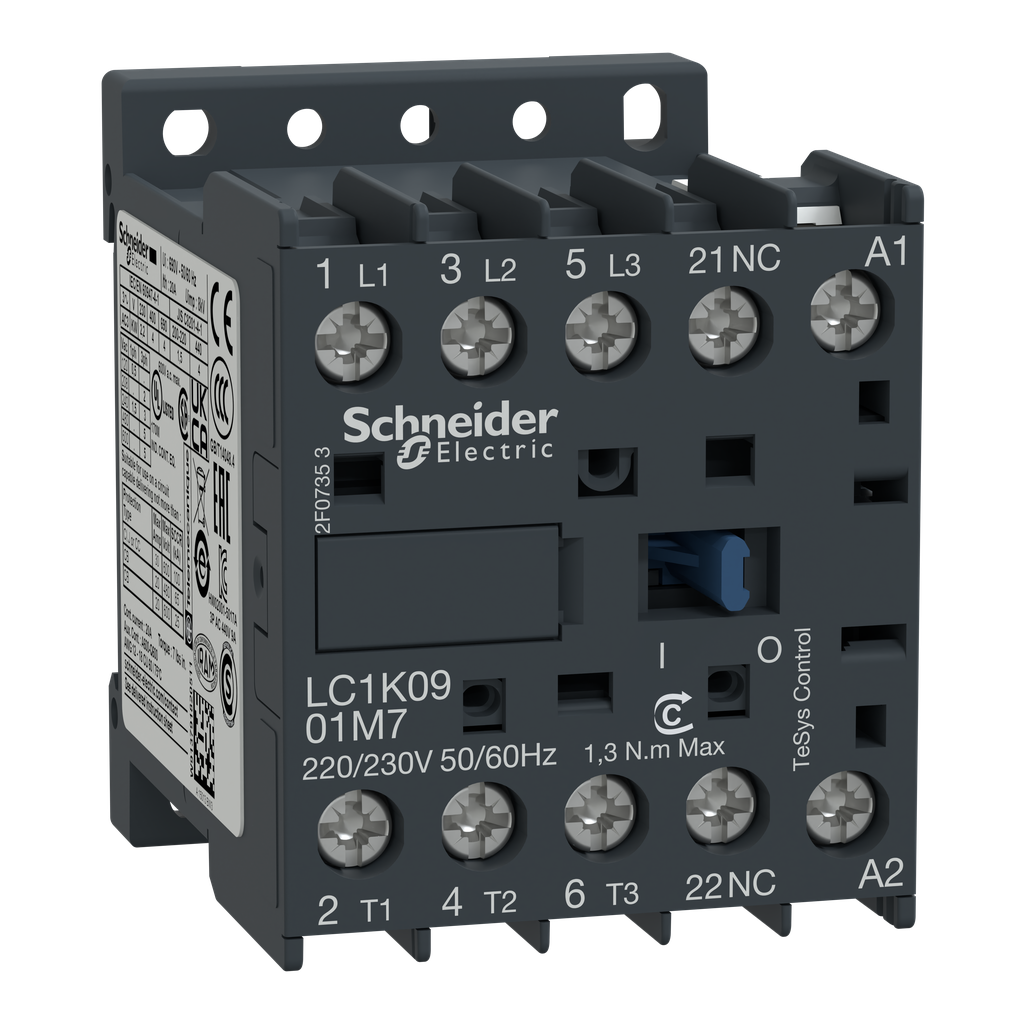

Contactor, TeSys K, 3P, AC-3, lt or eq to 440V 9A, 1 NC aux., 110VAC coil

Contactor, TeSys K, 3P, AC-3, lt or eq to 440V 9A, 1 NC aux., 110VAC coil

SKU: 498167 Category: NEMA Contactors & Starters
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • Reviews (0)
Description

LC1K0901F7 is a compact 3-pole TeSys K contactor from Schneider Electric for motor applications. Rated 9A AC-3 4kW@400V, it includes a 110V 50/60Hz AC coil and 1NC auxiliary contact. LC1K0901F7 is a 3-pole TeSys K contactor from Schneider Electric for simple motor applications rated up to 4kW@400V. Very compact, DIN-rail compatible, with connections by screw clamp terminals, it includes a 110V 50/60Hz AC coil and 1NC built-in auxiliary contact. Available worldwide, it complies with multi-standards (IEC, UL, CSA, CCC, EAC, Marine) and is certified Green Premium (RoHs/Reach). Very compact, 45mm wide, for DIN-rail and panel mounting. Provides a control circuit compatible with 50Hz and 60Hz supplies and 1NC built-in auxiliary contact. Optimized for simple power applications. Can be completed with auxiliary contact blocks (LA1K, LA2K) and thermal relays (LR2K).

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Contactor, TeSys K, 3P, AC-3, lt or eq to 440V 9A, 1 NC aux., 110VAC coil” Cancel reply

Your email address will not be published. Required fields are marked *
