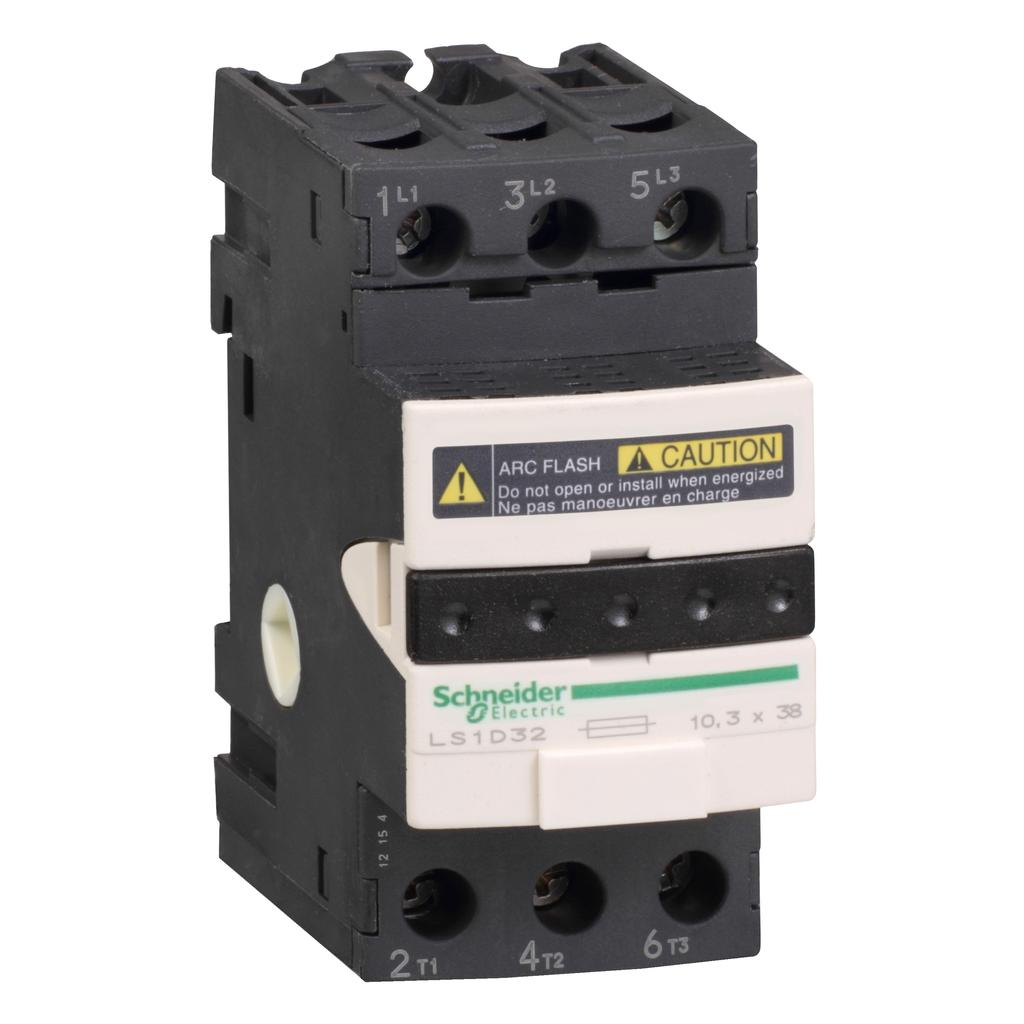

TeSys LS fuse carrier block, 3 poles (3P), for protection of motors and transformers up to 32A/690V. To be used with 10x38mm fuse links up to 32A and short circuit current up to 100kA@400V. It provides a front handle. Compact (45mm width), it can be used in modular panels, clipping on 35mm DIN rail or screw fixing on panel, connection by screw clamp terminals, padlockable. Fuse links (10x38mm aM, gG type) and add-on auxiliaries (signaling contact blocks, external handles for RH or LH side, additional contact block for 4 poles applications) are available (to be ordered separately). Multi standards certified (IEC, UL recognized), Green Premium product (RoHS/REACh).
Fuse disconnector, TeSys DF, 3P, 600V, 32A, fuse size 10x38mm, screw type
Fuse disconnector, TeSys DF, 3P, 600V, 32A, fuse size 10x38mm, screw type
