HomeNEMA Contactors & Starters TeSys Deca reversing contactor – 3P(3 NO) – AC-3 – <= 440 V 40 A – 230 V AC coil
Previous product
Placeholder
TSX Micro 37 05/08 PLC configurations
Back to products
Next product
primary_image
TeSys GB2 thermal magnetic circuit protector, 1 P, 3 A, Id = 40 A

TeSys Deca reversing contactor – 3P(3 NO) – AC-3 – <= 440 V 40 A – 230 V AC coil

TeSys Deca reversing contactor – 3P(3 NO) – AC-3 – <= 440 V 40 A – 230 V AC coil

SKU: 531324 Category: NEMA Contactors & Starters
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • Reviews (0)
Description

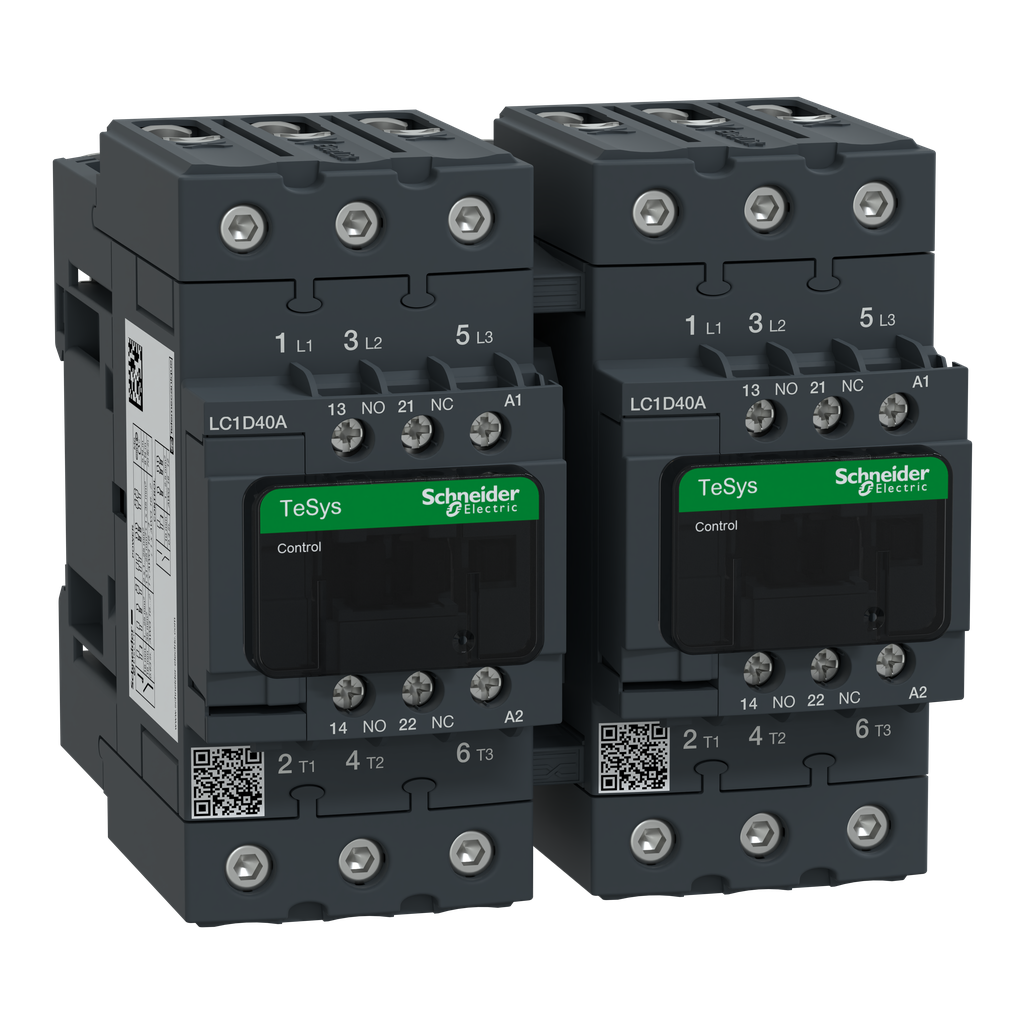

LC2D40AP7 is a 3-pole TeSys D reversing contactor from Schneider Electric for motor applications. Rated 40A AC-3 18.5kW@400V, it includes a 230V 50/60Hz AC coil, 2NO+2NC aux contacts, a mechanical interlock. LC2D40AP7 is a 3-pole TeSys D reversing contactor from Schneider Electric for motor applications up to 18.5kW@400V. It includes a 230V 50/60Hz AC coil and 2NO+2NC built-in auxiliary contacts, NC mirror certified. Compact, DIN-rail mounting, with mechanical interlock and pre-wired reversing circuit, it procures reliability and durability. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Compact product, 119mm wide, for DIN-rail and panel mounting. Assembled with mechanical interlock and pre-wired reversing circuit. Clear separation between power and control circuits, easy front access to coil and auxiliary contacts connections. Equipped with a 230V AC coil that can be supplied at 50Hz or 60Hz. Provides 4 built-in auxiliary contacts 2NO + 2NC, NC contacts are mirror certified suitable to be included in the control of safety systems. High electrical durability, guaranteed for 1.6 million cycles at 40A AC-3 440V, for demanding motor switching applications. Robust design with high making and breaking capacities up to 20 In. Power connections by EverLink BTR screw terminals providing constant tightening pressure.
