HomeAutomation & Control TeSys Deca contactor , 3P(3 NO) , AC-3 , <= 440V, 65 A , 48V DC standard coil
Previous product
primary_image
2 side panels for plinth. 400x100mm. Folded sheet steel. RAL 7022. IP 30. IK 10.
Back to products
Next product
Placeholder
Pump or compressor switch 9013GS - adjustable diff. - 20-40 psi

TeSys Deca contactor , 3P(3 NO) , AC-3 , <= 440V, 65 A , 48V DC standard coil

TeSys Deca contactor , 3P(3 NO) , AC-3 , <= 440V, 65 A , 48V DC standard coil

SKU: 519709 Category: Automation & Control
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • Reviews (0)
Description

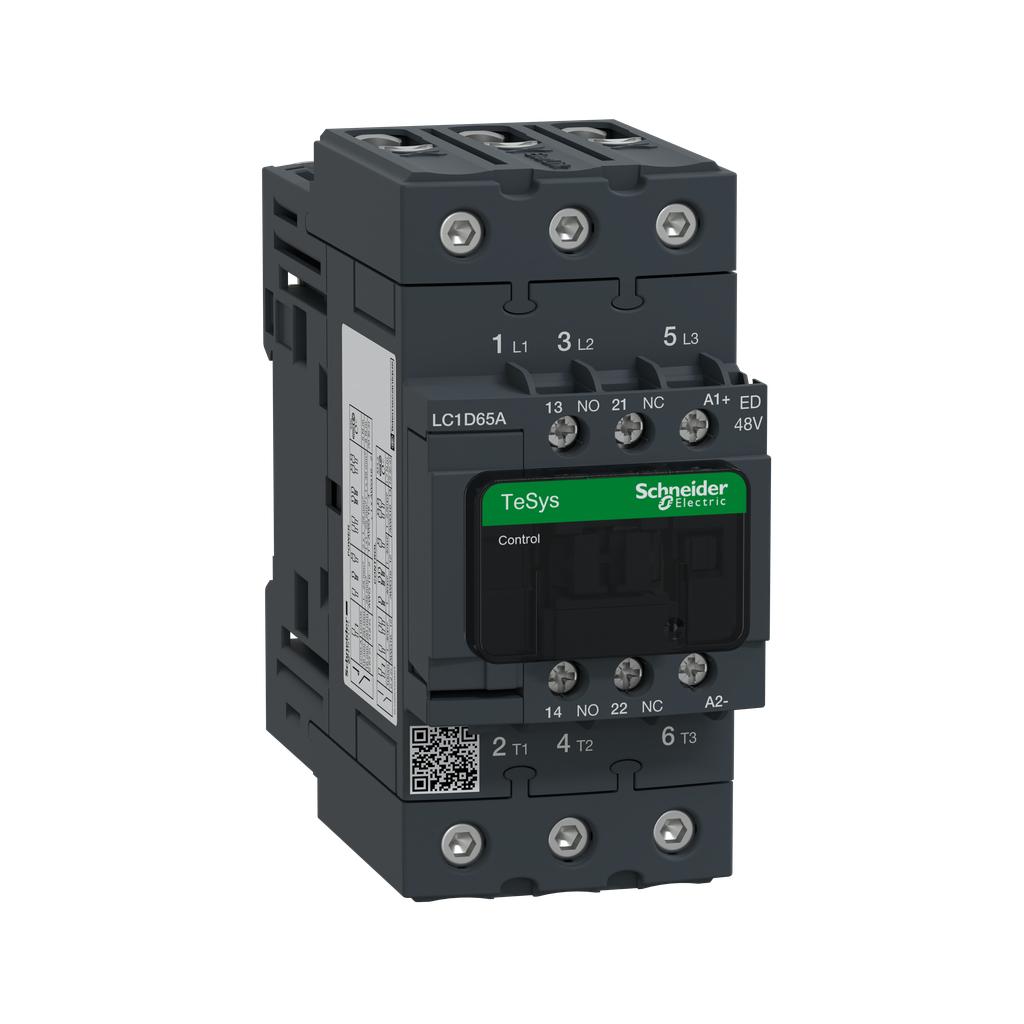

LC1D65AED is a compact 3-pole TeSys D contactor from Schneider Electric for motor applications. Rated 65A AC-3 30kW@400V, it includes a 48V DC coil and 1NO+1NC aux contacts. It can be used in safety applications. LC1D65AED is a 3-pole TeSys D contactor from Schneider Electric for motor applications up to 30kW@400V. It includes a 48V DC coil and 1NO+1NC built-in auxiliary contacts, it can be used in all control systems and safety applications thanks to its certified NC mirror contact. Compact, DIN-rail mounting, it procures high reliability and durability. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Compact product, 55mm wide, for DIN-rail and panel mounting. Clear separation between power and control circuits, easy front access to coil and auxiliary contacts connections. Equipped with a 48V DC coil for easy integration to all control systems. Provides 2 built-in auxiliary contacts 1NO + 1NC, NC is a certified mirror contact suitable to be included in the control of safety systems. High electrical durability, guaranteed for 1.6 million cycles at 65A AC-3 440V, for demanding motor switching applications. Robust design with high making and breaking capacities up to 20 In. Power connections by EverLink BTR screw terminals providing constant tightening pressure.
