HomePower Distribution Tandem circuit breaker, Homeline, 1 x 1 pole at 30A, 1 x 1 pole at 20A, 120/240VAC, 10kA AIR, plug in, UL
Previous product
Placeholder
FA/LA MOLDED CASE CIRCUIT BREAKER, 600V, 400A, 3P, SHUNT TRIP, SHORT HANDLE
Back to products
Next product
Placeholder
Transformer, Type T, industrial control, 1000 VA, 240/480 VAC primary / 120 VAC secondary, 1 phase, 50/60 Hz, 115 °C

Tandem circuit breaker, Homeline, 1 x 1 pole at 30A, 1 x 1 pole at 20A, 120/240VAC, 10kA AIR, plug in, UL

Tandem circuit breaker, Homeline, 1 x 1 pole at 30A, 1 x 1 pole at 20A, 120/240VAC, 10kA AIR, plug in, UL

SKU: 6701217 Category: Power Distribution
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • Reviews (0)
Description

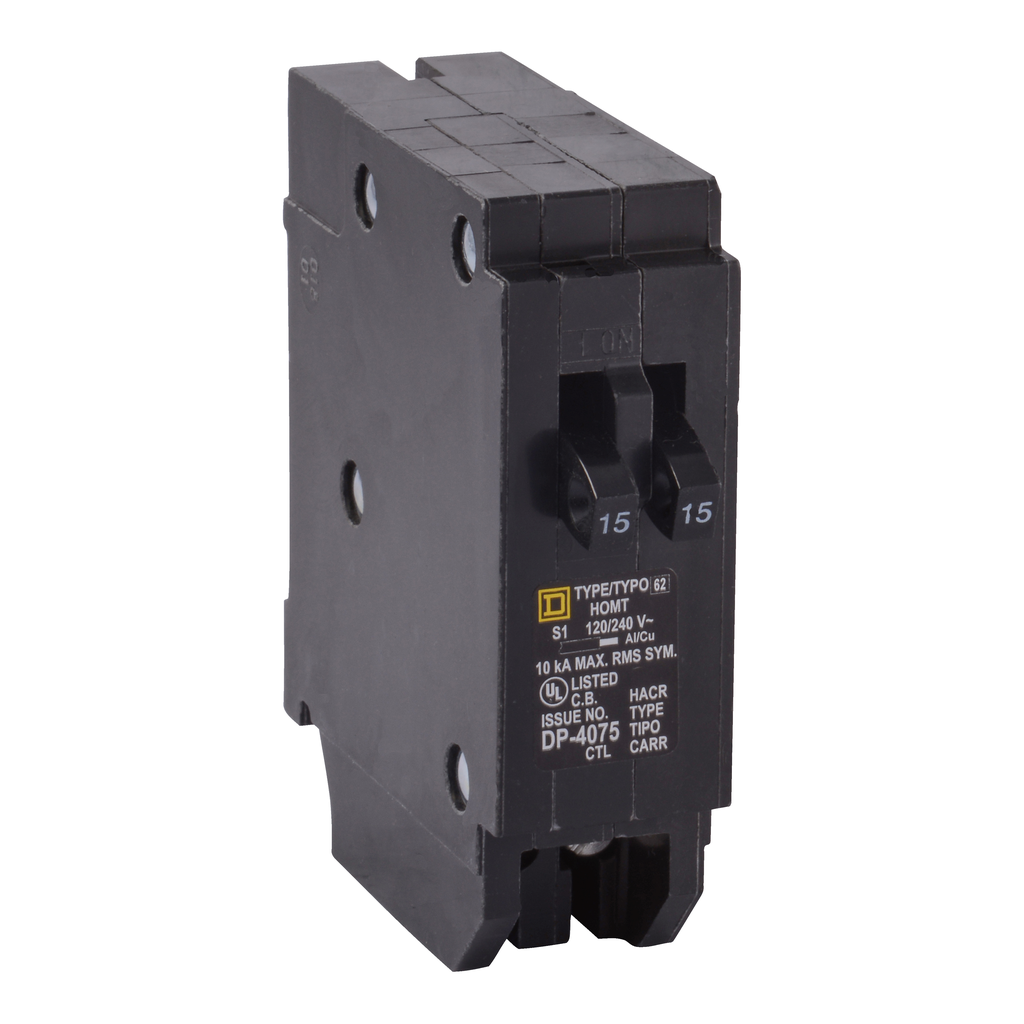

HOMT Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. The HOMT circuit breaker is two single pole thermal magnetic circuit breakers manufactured in tandem. This tandem breaker occupies only one HOM pole space. Each single pole HOMT plug in circuit breaker provides an individual switching and tripping action. This tandem HOM miniature tandem breaker with plug in mounting is rated 30 A and 20 A at 120/240 V. This circuit breaker provides 10 kA breaking capacity. This tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. The tandem breaker is 3.13 inches tall, 1.00 inches wide and 2.98 inches deep. HOMT tandem breakers are UL Listed. This Homeline Breaker comes in consumer packaging
