HomeStarters & Contactors Starter, Definite Purpose, nonreversing, 20A, 3 pole, 3 phase, 208V to 240V AC coil, melting alloy overload, NEMA 1
Previous product
primary_image
Photoelectric sensors XU, XUK, receiver, Sn 30 m, 12...24 VDC, M12
Back to products
Next product
primary_image
8903L electrically held lighting contactor, 12 P, 12 NO, 30 A, 600 V, 277 V 60 Hz coil, NEMA 1, selector switch

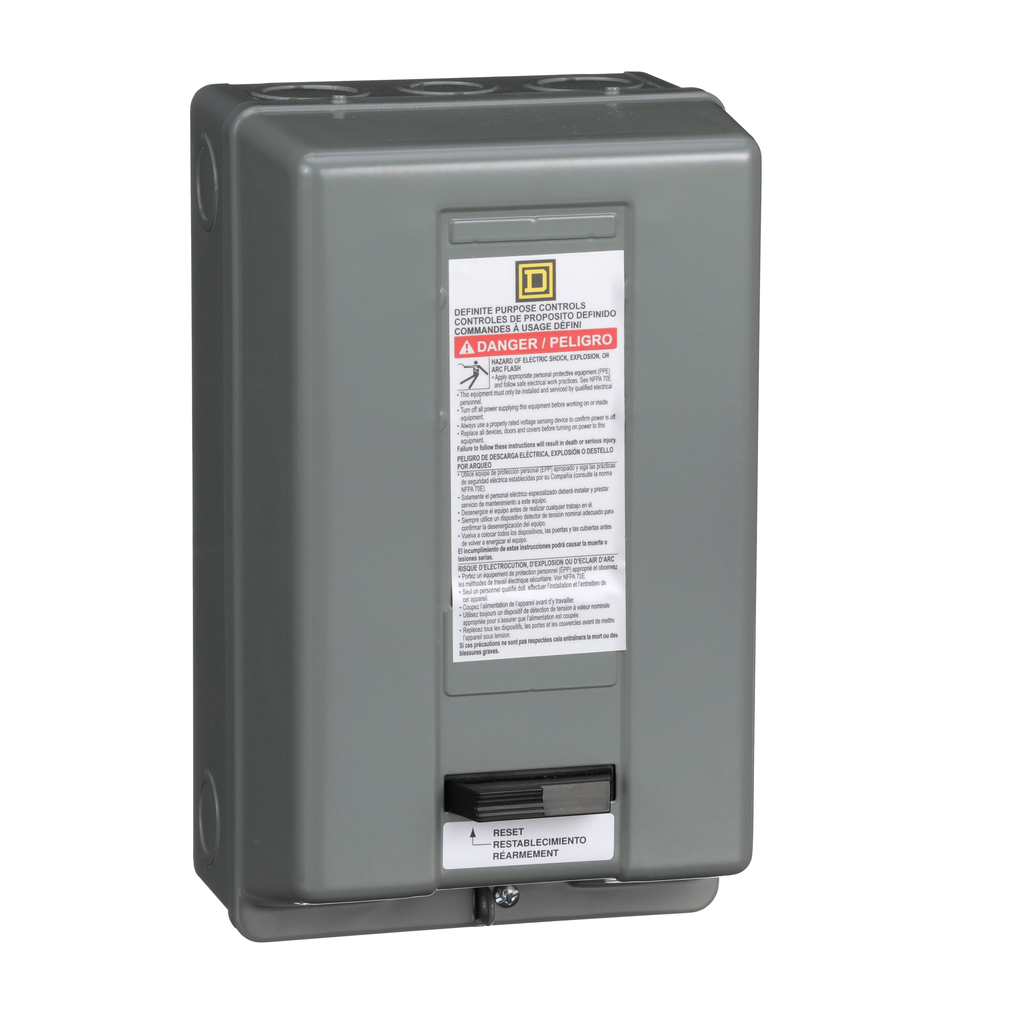

Starter, Definite Purpose, nonreversing, 20A, 3 pole, 3 phase, 208V to 240V AC coil, melting alloy overload, NEMA 1

Starter, Definite Purpose, nonreversing, 20A, 3 pole, 3 phase, 208V to 240V AC coil, melting alloy overload, NEMA 1

SKU: 15718797 Category: Starters & Contactors
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • Reviews (0)
Description

8911 definite purpose starters are inexpensive starters for applications with relatively low duty cycles. Typical applications include air compressors, agricultural equipment, pumps, and HVAC equipment. This three pole definite purpose starter has a full load rating of 20 amperes. This starter has ratings of 1.5 HP at 115 VAC and 3 HP at 230 VAC single phase. It has a 7.5 HP at 230 VAC, 460 VAC and 575 VAC poly phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 208 to 240 VAC 60 HZ and 220 VAC 50 Hz coil. The starter has straight through wiring. The melting alloy type overload relay uses Type B thermal units to sense over current conditions. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this definite purpose starter. Enclosure is 10.00 inches tall, 6.00 inches wide and 5.56 inches deep. Auxiliary contacts are available for these starters. 8911DPS definite purpose starters are UL component recognized.

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Starter, Definite Purpose, nonreversing, 20A, 3 pole, 3 phase, 208V to 240V AC coil, melting alloy overload, NEMA 1” Cancel reply

Your email address will not be published. Required fields are marked *
