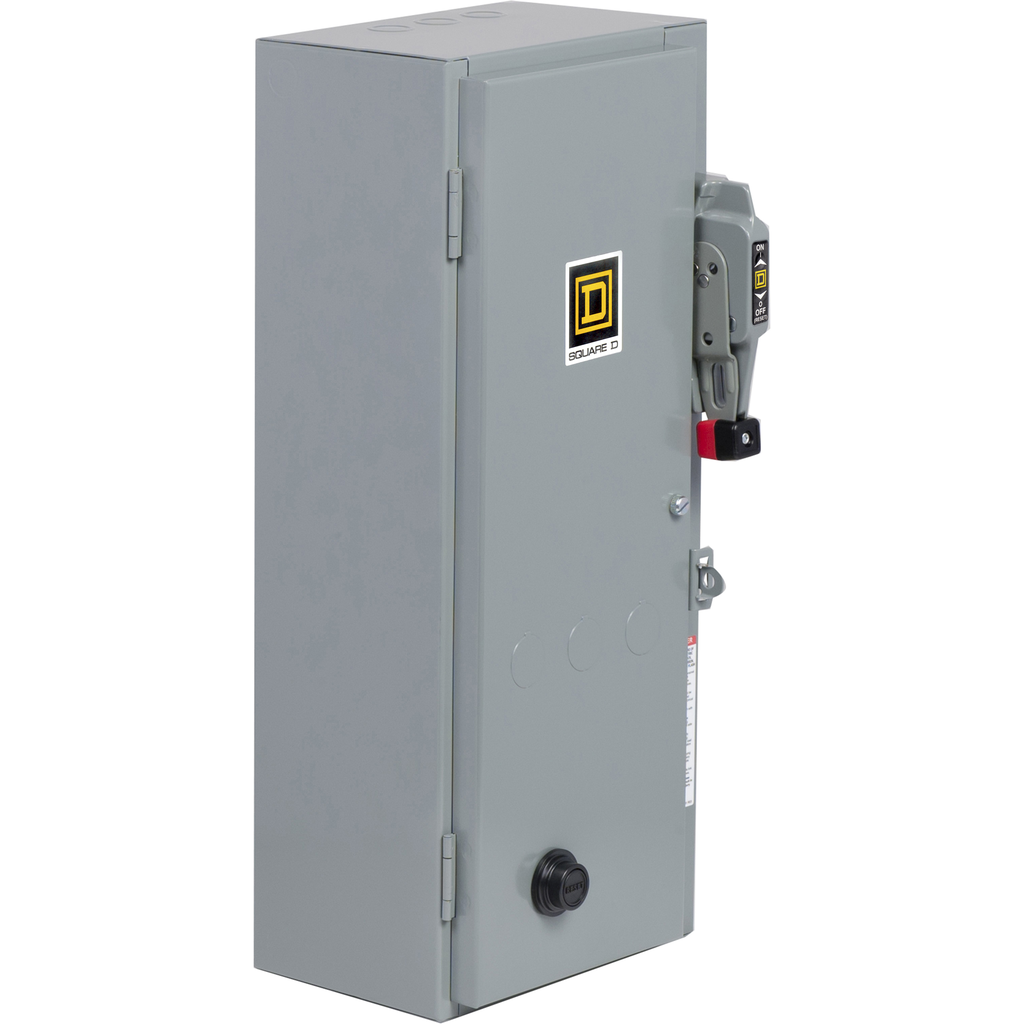

Type S nonreversing circuit breaker combination starters are for motor control applications. Combination starters combine the requirements for motor overload and short circuit protection into one package. NEMA Size 1 starters have ratings of up to 10 HP at 480 and 600 VAC three phase. This circuit breaker combination starter has a HHL Mag-Gard electronic motor circuit protector. This 3 pole starter is for three phase applications. Combination starters are available with a wide variety of replaceable coil voltages. Starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This nonreversing NEMA combination starter has a melting alloy type overload relay which uses Type B thermal units to sense over current conditions. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this starter. A wide variety of accessories are available for Type S starters. Type S combination starters are UL listed and CSA certified.
NEMA Combination Starter, Type S, HHL electronic motor circuit protector, Size 1, 27A, 3 phase, 120VAC coil, NEMA 1
NEMA Combination Starter, Type S, HHL electronic motor circuit protector, Size 1, 27A, 3 phase, 120VAC coil, NEMA 1
SKU: 15516524
Category: NEMA Contactors & Starters
