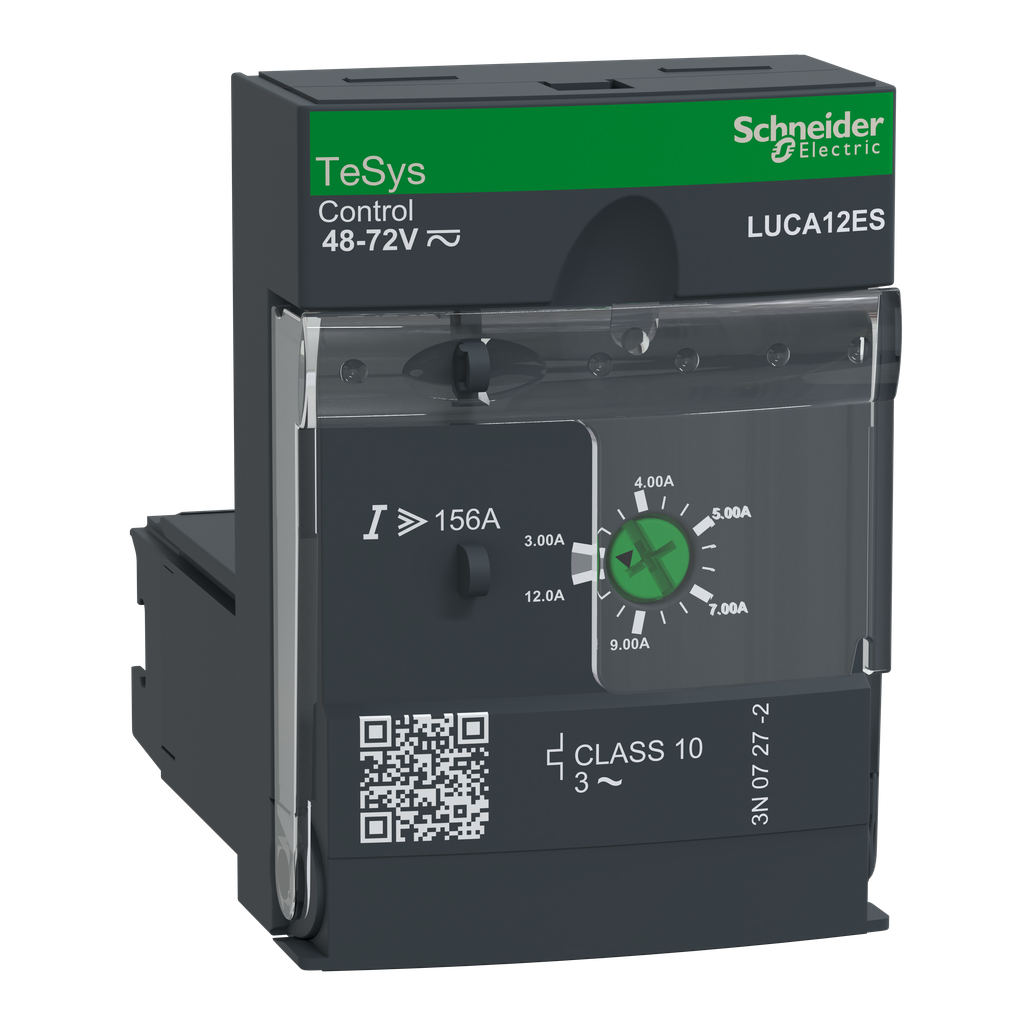

TeSys U standard control unit to be inserted in power bases LUB12, LUB32, LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 5.5kW@400V. It provides full protection to motors with a rated current Ir 3-12A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). To be used with a 48V AC / 48-72V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Standard control unit, TeSys Ultra, 3A to 12 A, 3P motors, thermal magnetic protection, class 10, coil 48-72VAC/DC
Standard control unit, TeSys Ultra, 3A to 12 A, 3P motors, thermal magnetic protection, class 10, coil 48-72VAC/DC
SKU: 4280593
Category: Automation & Control
Reviews (0)
Be the first to review “Standard control unit, TeSys Ultra, 3A to 12 A, 3P motors, thermal magnetic protection, class 10, coil 48-72VAC/DC” Cancel reply
