HomeServo Motors servo motor BMH, Lexium 32, 8.4Nm, 6000rpm, keyed shaft, with brake, IP65, IP67, 128 multiturn encoder
Previous product
primary_image
Hybrid Cable Lexium 62 connection module and Lexium 62 distribution box, 16 m
Back to products
Next product
primary_image

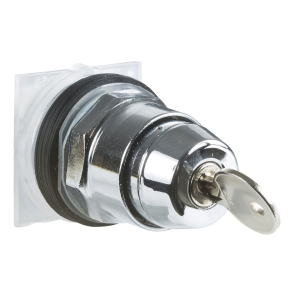

30mm push button, Type K, 3 position key operated selector switch, 6A inductive at 120VAC, 2NO/2NC contacts, NEMA 4, 13

servo motor BMH, Lexium 32, 8.4Nm, 6000rpm, keyed shaft, with brake, IP65, IP67, 128 multiturn encoder

servo motor BMH, Lexium 32, 8.4Nm, 6000rpm, keyed shaft, with brake, IP65, IP67, 128 multiturn encoder

SKU: 529952 Category: Servo Motors
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • Reviews (0)
Description

This product is part of the Lexium 32 range, an offer of motion servo drives for machines from 0.15kW to 7kW. The 10-pole servo motor features a medium moment of inertia with maximum mechanical speed of 6000RPM, parallel keyed shaft and holding brake. It is equipped with a SinCos Hiperface® encoder (131072 points/turn x 4096 turns) for automatic transmission of data from the servo motor to the servo drive. BMH servo motor is medium inertia motor, it is particularly suitable for high-load applications and allows the movement to be adjusted in a more robust manner. It is a synchronous servo motor with a rated supply voltage of 480V, a continuous stall current of 7.69A and a continuous power of 3.3W. The shaft dimensions are 19mm (Diameter) x 40mm (Length). It is furnished with rotatable right-angled connectors for electrical connection. It is an IP65 (standard) and IP67 (with kit) rated product. Its dimensions are 234.3mm (Length) x 100mm (Width), centring collar dimensions are 3.5mm (Depth) x 95mm (Diameter) with 115mm circle diameter of the mounting hole. It weighs 8.15kg. This product is compatible with Lexium 32 servo drives. It supports international standard 100mm flange mount with a natural convection cooling system. Encoder gives the absolute position of the motor so that flows can be synchronized and sends data from the servo motor to the servo drive, which provides automatic identification of the motor when the servo drive starts. BMH servo motor with a 3-phase stator and neodymium iron boron (NdFeB) magnets. Casing with RAL 9005 opaque black paint protective coating. 4-point axial mounting flange. Cables and connectors to be ordered separately.
