HomeStarters & Contactors NEMA Starter, Type S, reversing, horizontal, Size 4, 135A, 100 HP at 575 VAC, up to 100 kA SCCR, 3 phase, 3 pole, Motor Logic SSOLR, 240 V coil, open
Previous product
primary_image
integrated drive ILA with servo motor - 24..36 V - Profibus DP - indus connector
Back to products
Next product
primary_image

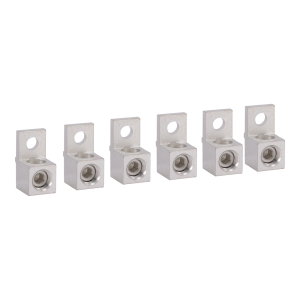

Lug kit,for LC1F225-330,set of 6 parts

NEMA Starter, Type S, reversing, horizontal, Size 4, 135A, 100 HP at 575 VAC, up to 100 kA SCCR, 3 phase, 3 pole, Motor Logic SSOLR, 240 V coil, open

NEMA Starter, Type S, reversing, horizontal, Size 4, 135A, 100 HP at 575 VAC, up to 100 kA SCCR, 3 phase, 3 pole, Motor Logic SSOLR, 240 V coil, open

SKU: 17010152 Category: Starters & Contactors
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • Reviews (0)
Description

Type S NEMA reversing magnetic starters are used for full voltage starting, stopping, and reversing AC squirrel cage motors. NEMA 8736 reversing starters are available in NEMA Sizes 00 to 7 and have ratings up to 810 amperes. NEMA reversing starters consist of two 8502S NEMA contactors that are mechanically and electrically interlocked and an overload relay. Sizes 0-5 reversing starters are available in either horizontal or vertical arrangements. This reversing starter is arranged horizontally. This 3 pole NEMA Size 4 reversing starter has an 135 ampere rating. This three phase NEMA Size 4 reversing starter has 40 HP at 200 VAC, 50 HP at 230 VAC and 100 HP at 460 and 575 VAC ratings. This reversing NEMA motor starter has a Motor Logic overload relay with a 45A to 135A Class 30 range to sense over current conditions. This NEMA starter has a 100 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 220/240 VAC 50/60 Hz operating coil wired for common control. This NEMA reversing starter is an open device without an enclosure. This starter is 14.59 inches tall, 14.25 inches wide and 7.00 inches deep. A wide variety of accessories are available for Type S starters. Type S reversing NEMA motor starters are UL listed and CSA certified.
