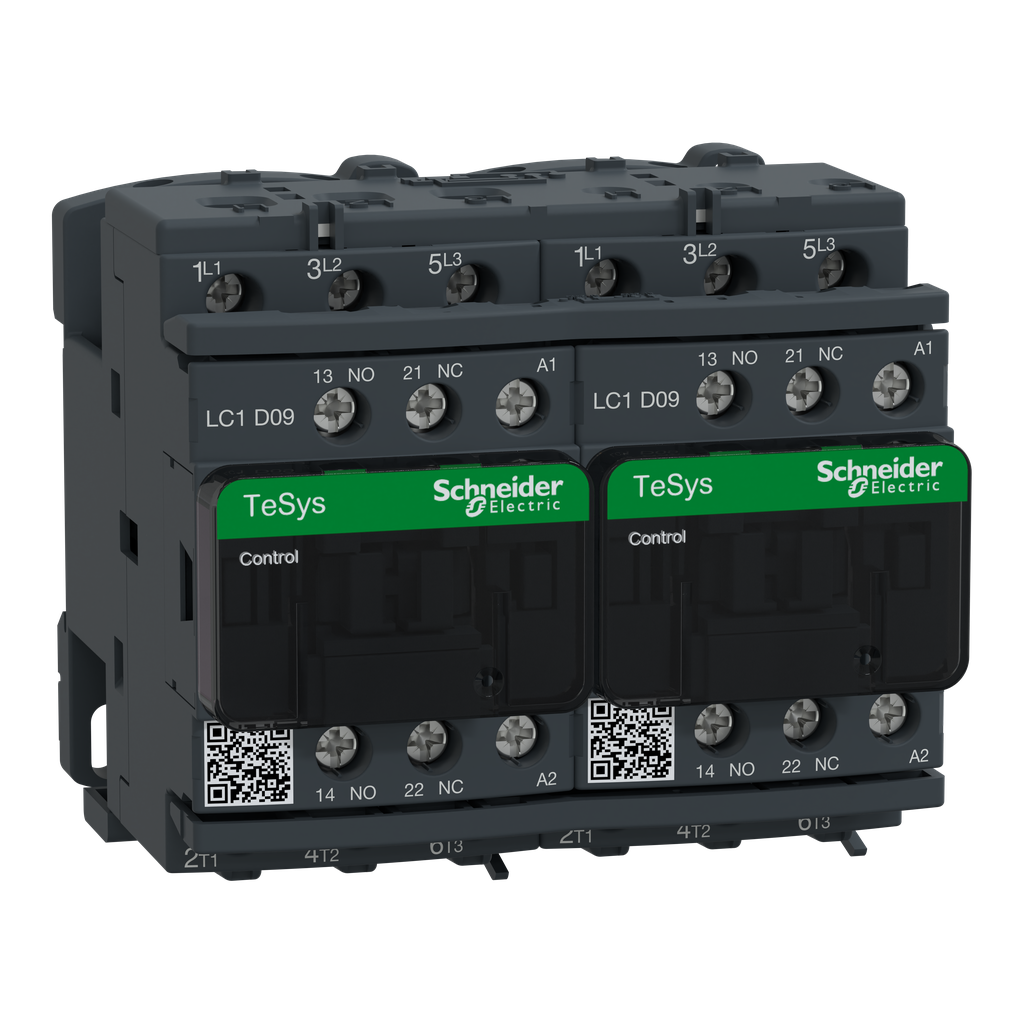

TeSys D reversing contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3 (4kW@400V). It provides 115V 50/60Hz AC coils, 2NO+2NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
TeSys Deca reversing contactor – 3P(3 NO) – AC-3 – <= 440 V 9 A – 115 V AC coil
TeSys Deca reversing contactor – 3P(3 NO) – AC-3 – <= 440 V 9 A – 115 V AC coil
SKU: 532905
Category: Starters & Contactors
