HomeAutomation & Control Remote transmitter module, Modicon TM5, communication between I/O IP20 and IP67
Previous product
primary_image
Square D - PowerLogic Energy Meter, EXT Range 800A, 2.45"X2.89" ID, 3CT's
Back to products
Next product
primary_image
NEMA Contactor, Type S, nonreversing, Size 2, 45A, 25 HP at 575 VAC, 3 phase, up to 100 kA, 3 pole, 120 VAC coil, open

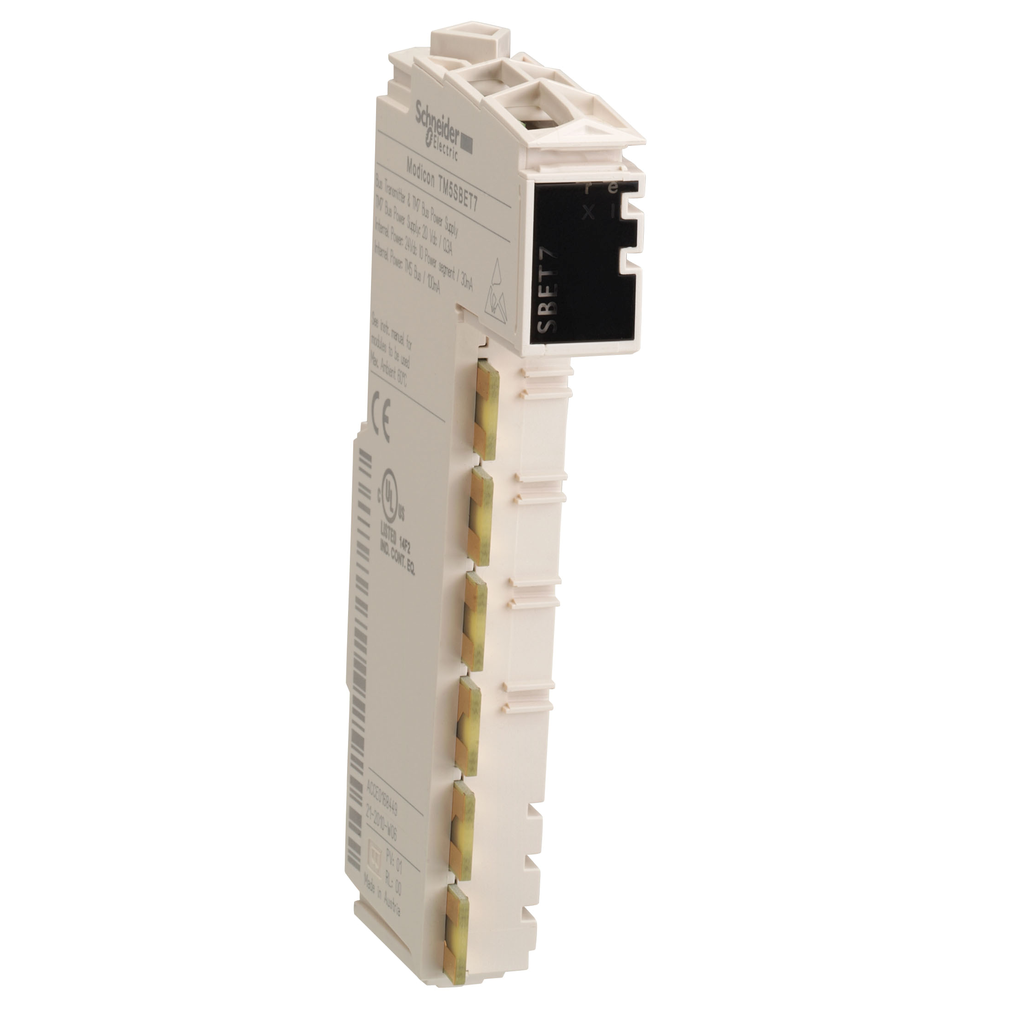

Remote transmitter module, Modicon TM5, communication between I/O IP20 and IP67

Remote transmitter module, Modicon TM5, communication between I/O IP20 and IP67

SKU: 2964684 Category: Automation & Control
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • Reviews (0)
Description

This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. The remote transmitter module provides communication between IP20 and IP67 I/O islands and distribute power. It is a remote transmitter module with a current consumption of 25mA at 24V DC input/output, 100mA at 5V DC bus and a maximum power dissipation of 1.1W. This product is part of a flexible and scalable I/O configuration for automation solutions. The bus length is 2500m and maximum cable distance between devices is 100m. It is an IP20 rated product. The housing colour is white. It weighs 0.025kg. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. This product is compatible with Modicon LMC058 motion controller and Modicon M258 logic controller. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Remote transmitter module, Modicon TM5, communication between I/O IP20 and IP67” Cancel reply

Your email address will not be published. Required fields are marked *
