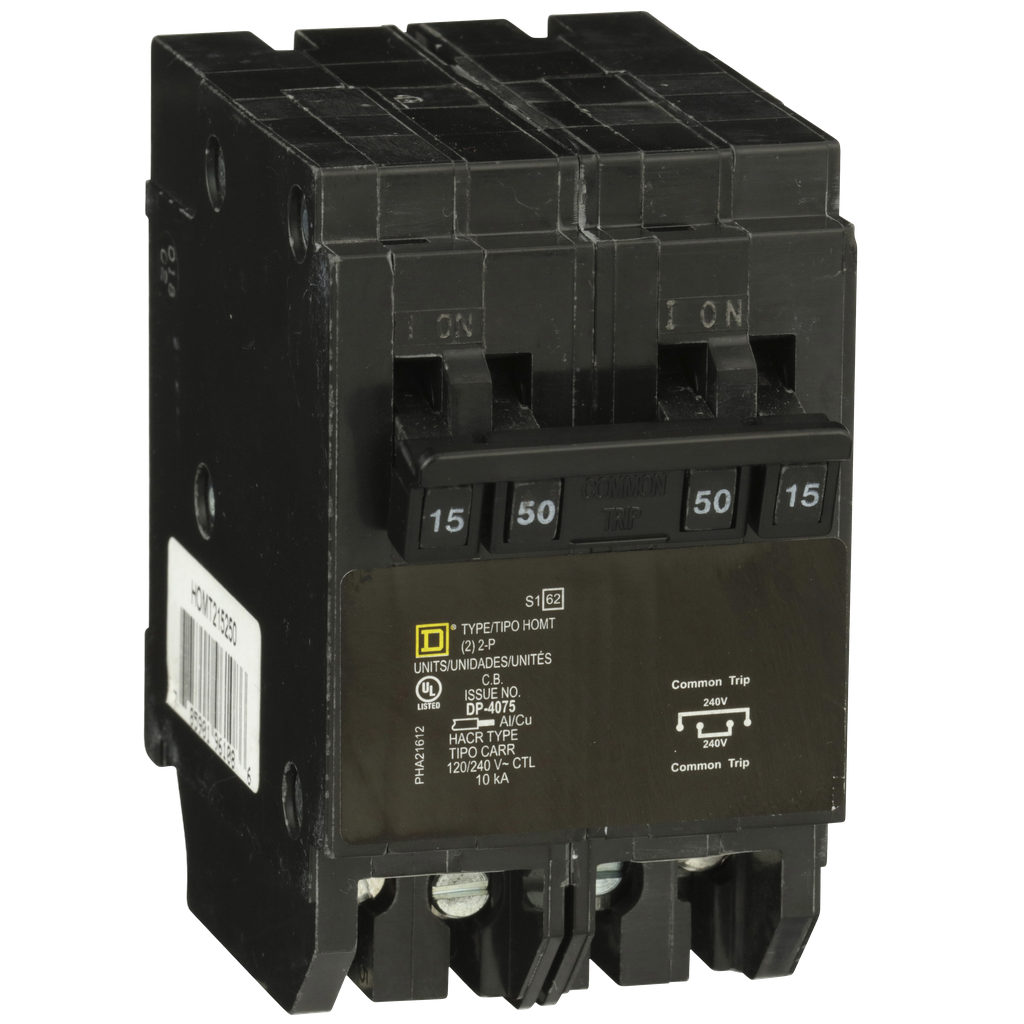

Quad tandem circuit breaker, Homeline, 1 x 2 pole at 15A, 1 x 2 pole at 50A, 120/240VAC, 10kA AIR, plug in, UL

Quad tandem circuit breaker, Homeline, 1 x 2 pole at 15A, 1 x 2 pole at 50A, 120/240VAC, 10kA AIR, plug in, UL

SKU: 9171919 Category: Circuit Breakers
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • Reviews (0)
Description

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. The HOMT circuit breaker is two tandem 2 pole thermal magnetic circuit breakers manufactured in tandem. This quad tandem breaker occupies two HOM pole spaces. This quad tandem circuit breaker consists of a two pole breaker and a two pole breaker. This quad tandem circuit breaker provides a standard circuit protection and is HACR rated. One of the two pole breaker is rated 15A at 120/240 VAC and other two pole breaker is rated 50A at 120/240 VAC. This circuit breaker provides 10 kA breaking capacity. The 15A two pole breaker of this quad tandem breaker will accept 14 AWG to 8 AWG copper or aluminum wire. The 50A two pole breaker of this quad tandem breaker will accept 14 AWG to 6 AWG copper or aluminum wire. HOMT tandem breakers are UL Listed. Circuit breaker is consumer packaged.
