HomePower Distribution Mini circuit breaker, QOU, 30A, 3 pole, 240 VAC, 10kA, auxiliary switch
Previous product
primary_image
NEMA Starter, Type S, reversing, horizontal, Size 00, 9A, 2 HP at 575 VAC, up to 100 kA SCCR, 3 phase, 3 pole, Motor Logic SSOLR, 120 VAC coil, NEMA 1
Back to products
Next product
Placeholder
Gearbox with straight teeth GBX- Ø 60 mm- reduction 60:1- < 22arcmin- 44 N.m

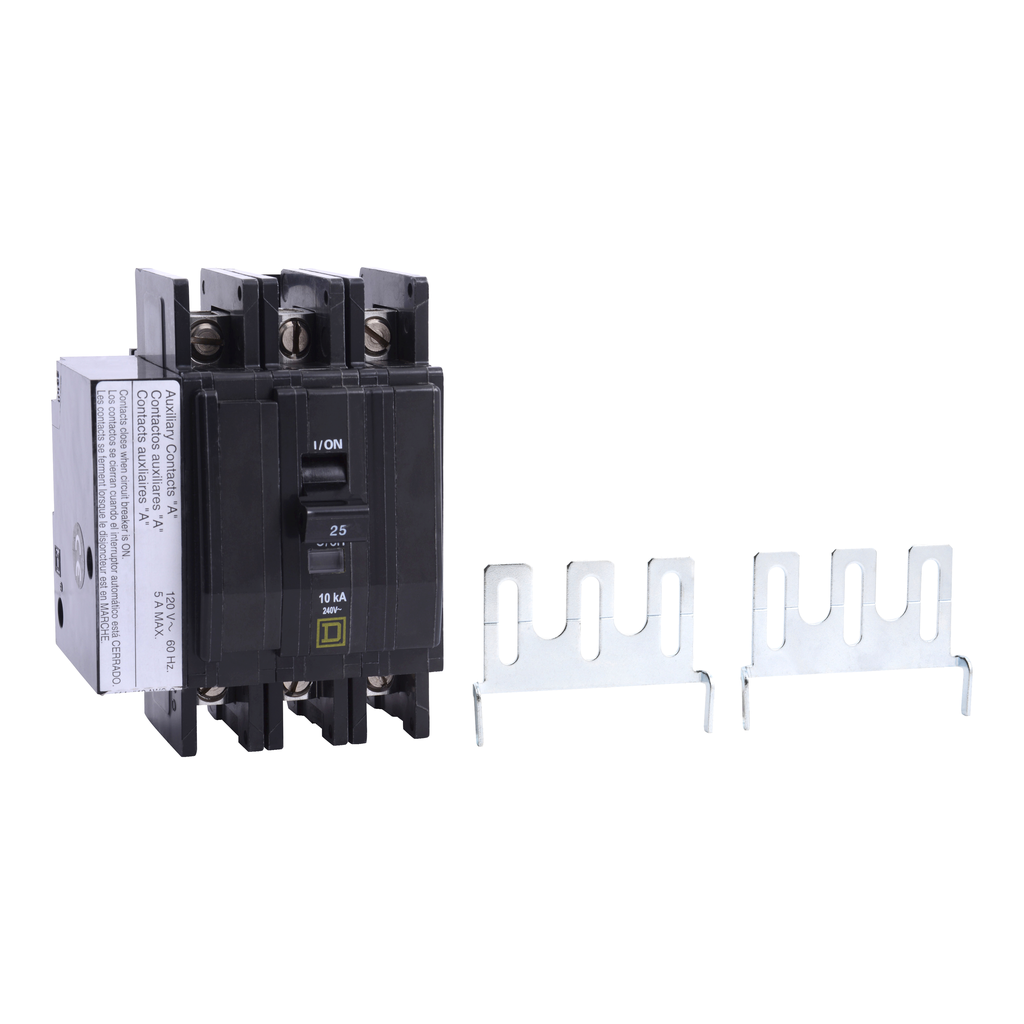

Mini circuit breaker, QOU, 30A, 3 pole, 240 VAC, 10kA, auxiliary switch

Mini circuit breaker, QOU, 30A, 3 pole, 240 VAC, 10kA, auxiliary switch

SKU: 15339481 Category: Power Distribution
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • Reviews (0)
Description

QOU unit mount miniature circuit breakers (cable-in/cable-out) are ideal for OEM applications. QOU breakers are one, two or three pole thermal magnetic circuit breakers which provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. These QOU miniature circuit breakers can be DIN rail mounted, surface mounted or flush mounted using mounting feet. This three pole QOU miniature circuit breaker is rated as 30A, 240 VAC. This circuit breaker provides 10 kA breaking capacity. A full line of accessories are available for these circuit breakers. This breaker has an auxiliary switch. The factory installed quick connects will accept one 14 AWG to 2 AWG copper or aluminum wire. This circuit breaker has a maximum height of 4.05 inches, a maximum width of 3.00 inches and maximum depth of 2.95 inches. QOU circuit breakers are UL Listed and CSA Certified.

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “Mini circuit breaker, QOU, 30A, 3 pole, 240 VAC, 10kA, auxiliary switch” Cancel reply

Your email address will not be published. Required fields are marked *
