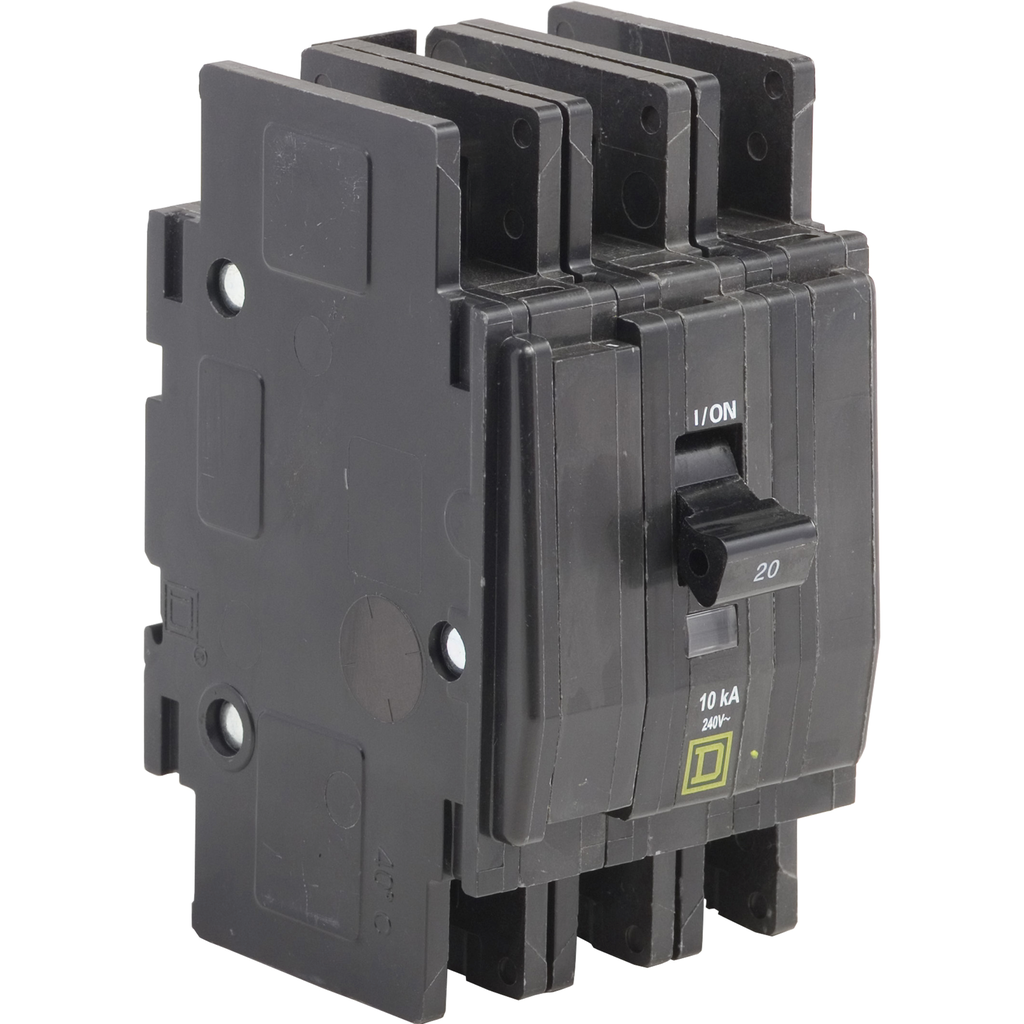

QOU unit mount miniature circuit breakers (cable-in/cable-out) are ideal for OEM applications. QOU breakers are one, two or three pole thermal magnetic circuit breakers which provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick break action and positive handle indication. These QOU miniature circuit breakers can be DIN rail mounted, surface mounted or flush mounted using mounting feet. This three pole QOU miniature circuit breaker is rated as 25A, 240VAC. This unit provides 10 kA breaking capacity. A full line of accessories are available for these circuit breakers. The slotted box lugs will accept one 14 AWG to 2 AWG copper or aluminum wire. This unit includes a ring terminal. QOU circuit breakers are UL Listed and CSA Certified.
Mini circuit breaker, QOU, 25A, 3 pole, 240 VAC, 10kA, ring terminal
Mini circuit breaker, QOU, 25A, 3 pole, 240 VAC, 10kA, ring terminal
