This product is part of the Modicon TM5 range, an High-Performance and Safe IP20 Modular I/O System. It is a Profibus DP communication module for Modicon M258 controllers. It ensures the communication on Profibus bus of M258 controllers monitoring decentralized sensors. This is a communication module designed for creating distributed IO islands on Profibus DP bus. This optional communication module is inserted in two free PCI slots located on M258 logic controllers. It has 1 isolated serial link, female SUB-D 9 connector (RS485), with a 12 Mbit/s data transmission rate. It weighs 0.064kg. It measures 25mm wide, 99mm high, 75mm deep. The Modicon TM5 meets the typical requirements of production and packaging machinery, as well as material handling and assembly systems. This product is certified by GOST-R, C-Tick, cULus and CSA. It meets IEC 61131-2, UL 508, CSA C22.2 No 213 and CSA C22.2 No 142 standards. It is compatible with Modicon TM258LD42DT4L, TM258LF42DT4L, TM258LF42DR and TM258LF66DT4L logic controllers. It is installed by mounting on a 35mm DIN rail. This modular IO system provides a flexible and scalable configuration of remote or distributed IO islands by connection with Modicon and PacDrive 3 controllers. Flexible and scalable, designed for complex machines.

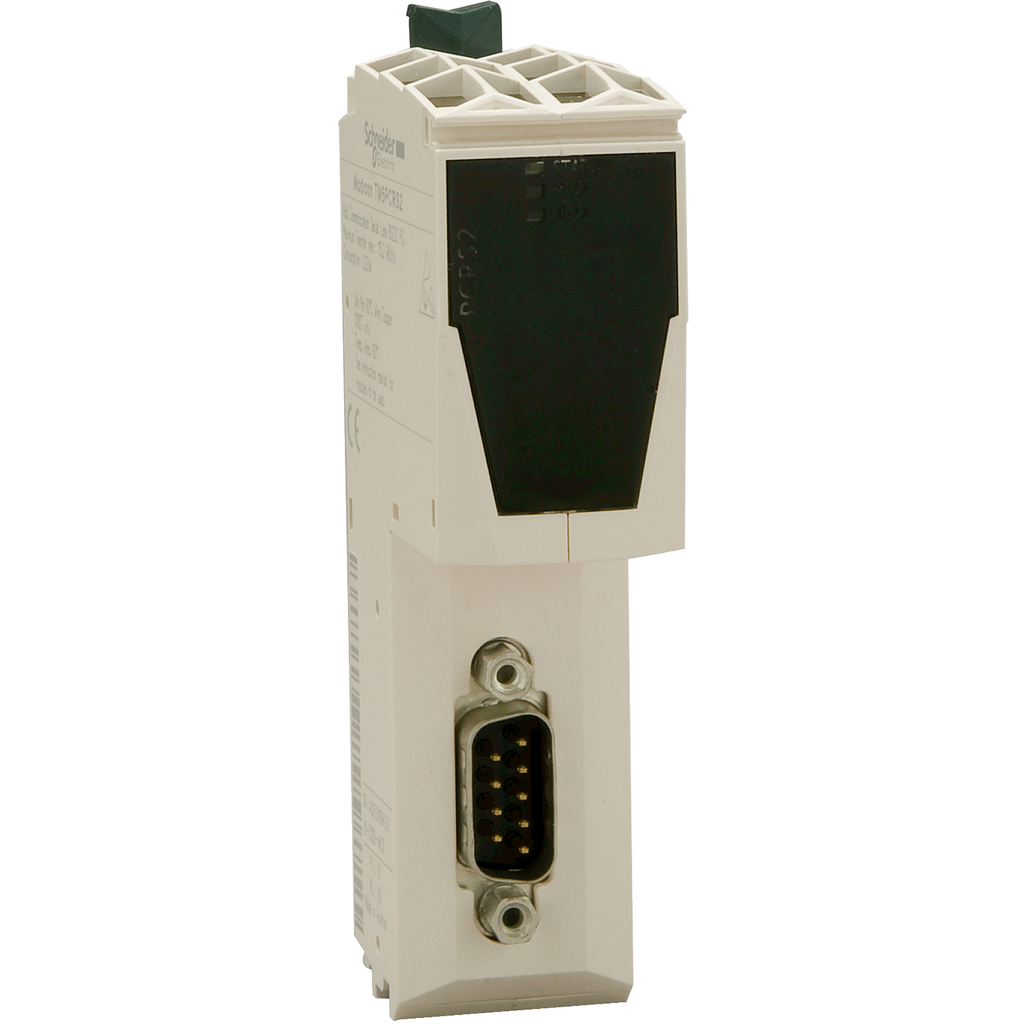

Profibus DP communication module, Modicon TM5, slave link, PCI
Profibus DP communication module, Modicon TM5, slave link, PCI
SKU: 2987940
Category: Automation & Control
Reviews (0)
Be the first to review “Profibus DP communication module, Modicon TM5, slave link, PCI” Cancel reply
