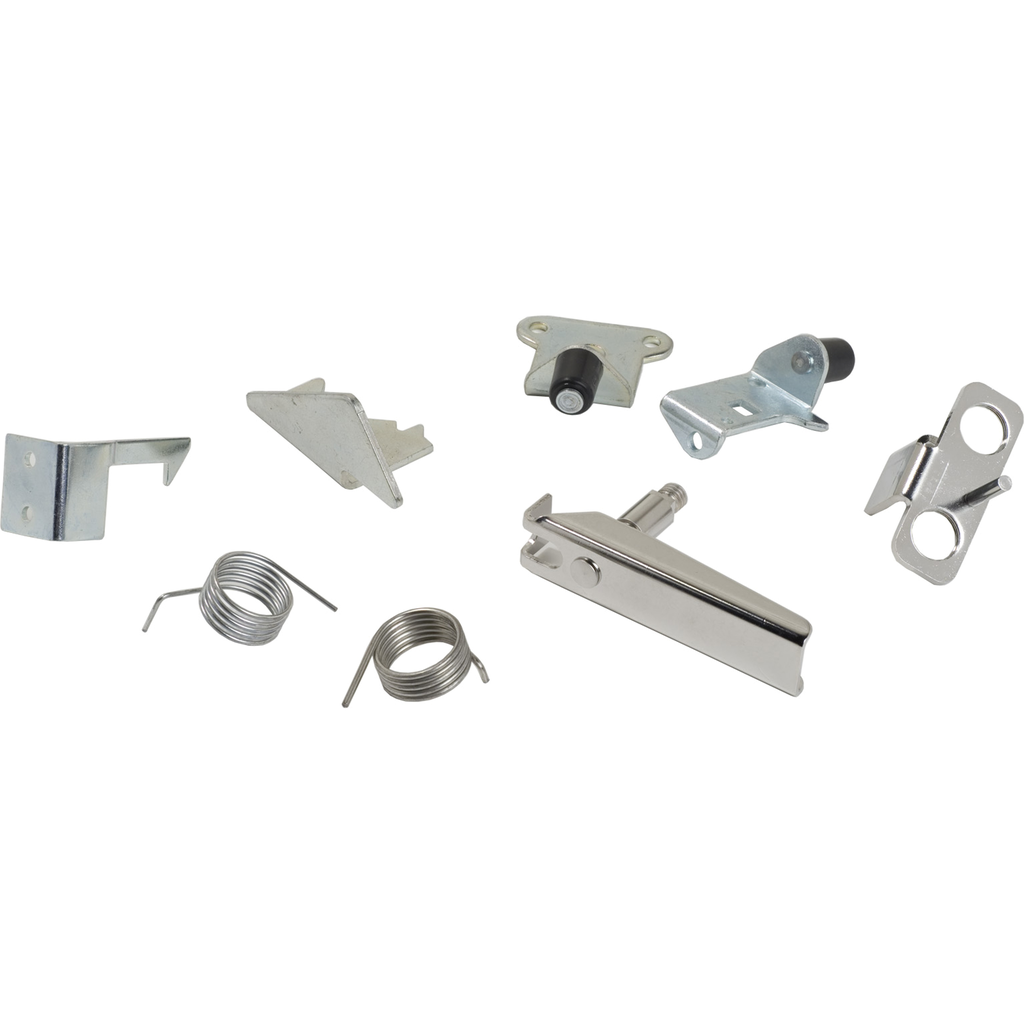

M8 door closing mechanism is designed to close and seal 1.125 in. deep doors of single or multi-door NEMA Type 12 enclosures. The M8 door closing mechanism can be used on doors hinged on either the left or right hand side. 9423M8 vault type door closing mechanisms for single or multi door enclosure with openings from 61 to 90 inches. This M1 mechanical interlock kit is designed to interlock a Class 9422 handle mechanism with the Type M8 door closing mechanism. This kit prevents opening the master door (or single door) with the disconnect handle in the ON position. The kit makes it mandatory to use a screwdriver to gain entry to the enclosure, regardless of the disconnect handle position.
Operating mechanisms, door closing mechanism, NEMA 12 enclosures with vault doors
Operating mechanisms, door closing mechanism, NEMA 12 enclosures with vault doors
SKU: 172564740
Category: Automation & Control
Reviews (0)
Be the first to review “Operating mechanisms, door closing mechanism, NEMA 12 enclosures with vault doors” Cancel reply
