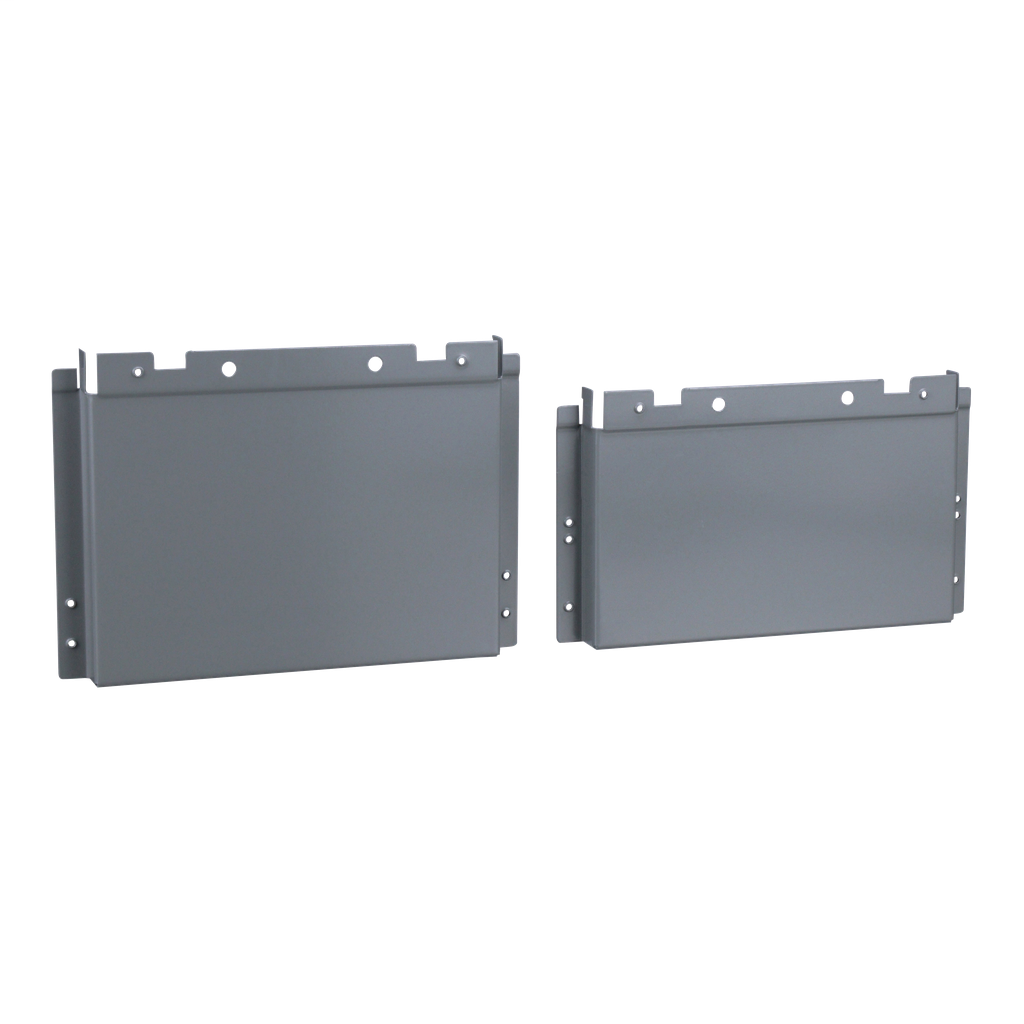

This feedthrough lug kit is an accessory of the Schneider Electric™ NQ 240VAC lighting and appliance panelboards, allowing greater power routing flexibility. Feedthrough lugs provide the option of easily connecting power from a panelboard to another downstream load center. The kit includes neutral and feedthrough lugs, a long and a short cover extension, rail extensions and splices, and tapping screws for a 225A rated feedthrough option. With the two cover extension lengths, this kit can be used on 54, 72, and 84 circuit panelboards. The kit is compliant with CULus standards.
Panelboard accessory, NQ, lug kit, feedthrough, 225A, 54 circuits or higher
Panelboard accessory, NQ, lug kit, feedthrough, 225A, 54 circuits or higher
