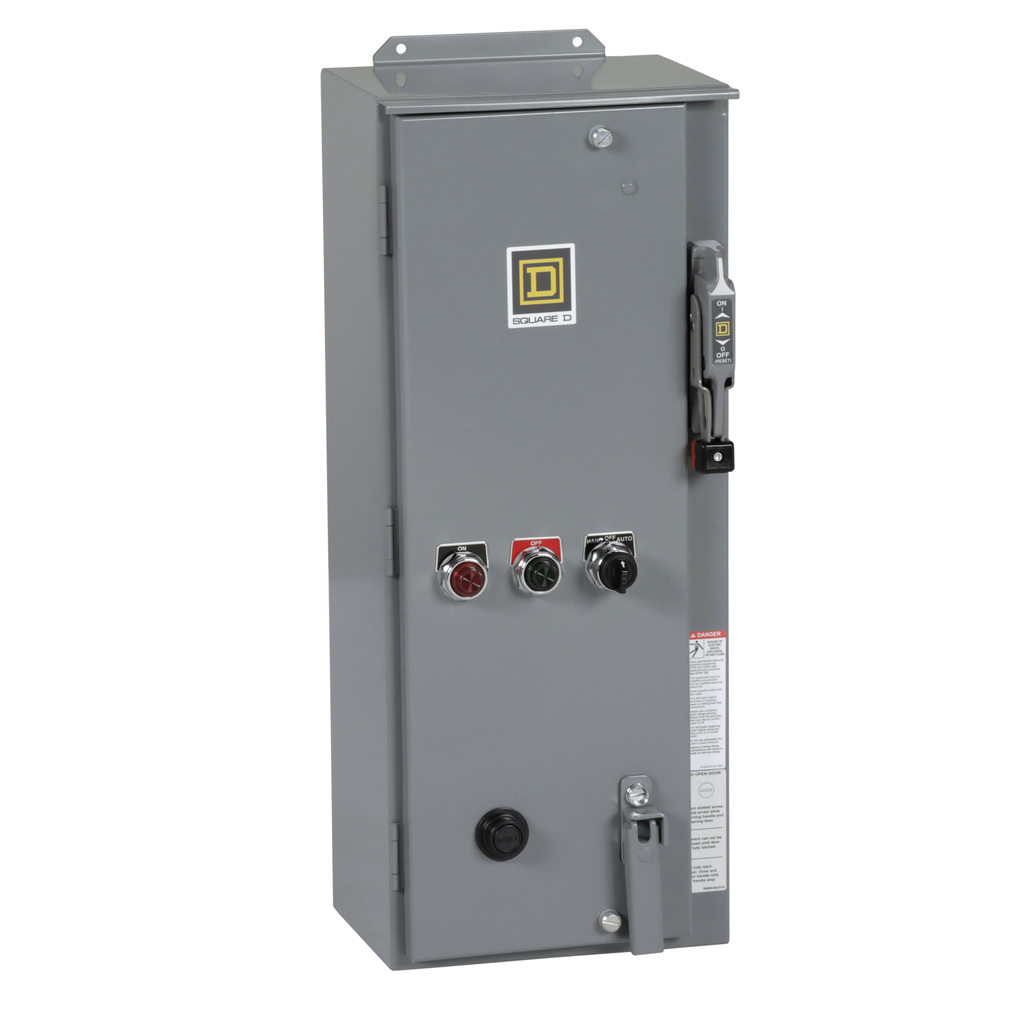

HomeStarters & Contactors NEMA combination starter, Type S, 30A fusible disconnect, Size 2, 45A, 15HP at 600VAC, 3 phase, 3 pole, Motor Logic SSOLR, 120VAC coil, NEMA 12
Previous product
primary_image
Mini circuit breaker, QO, 15A, 1 pole, 120/240VAC, 10kA, plug in, 50 deg C
Back to products
Next product
Placeholder
Self-tapping stand-offs M4 in steel, hight: 20 mm.

NEMA combination starter, Type S, 30A fusible disconnect, Size 2, 45A, 15HP at 600VAC, 3 phase, 3 pole, Motor Logic SSOLR, 120VAC coil, NEMA 12

NEMA combination starter, Type S, 30A fusible disconnect, Size 2, 45A, 15HP at 600VAC, 3 phase, 3 pole, Motor Logic SSOLR, 120VAC coil, NEMA 12

SKU: 1361514 Category: Starters & Contactors
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • Reviews (0)
Description

Type S nonreversing fusible combination starters are for motor control applications. Combination starters combine the requirements for motor overload and short circuit protection into one package. NEMA Size 2 starters have ratings of up to 15 HP at 480 and 600 VAC poly phase. Combination starter has 30 ampere Class H and K fuse clips. This 3 pole starter is for poly phase applications. Combination starters are available with a wide variety of replaceable coil voltages. Starter has a 110/120 VAC 50/60 Hz operating coil wired for separate control. This nonreversing NEMA combination starter has a Motor Logic solid state overload relay to detect over current conditions. A painted sheet steel NEMA 3R/12 dusttight enclosure is used to protect this starter. Enclosure is 27.75 inches tall, 10.5 inches wide and 9.59 inches deep. A wide variety of accessories are available for Type S starters. This combination starters is supplied with a HOA selector switch, a red and green pilot light, auxiliary contacts and an interlock on disconnect. Type S combination starters are UL listed and CSA certified.
