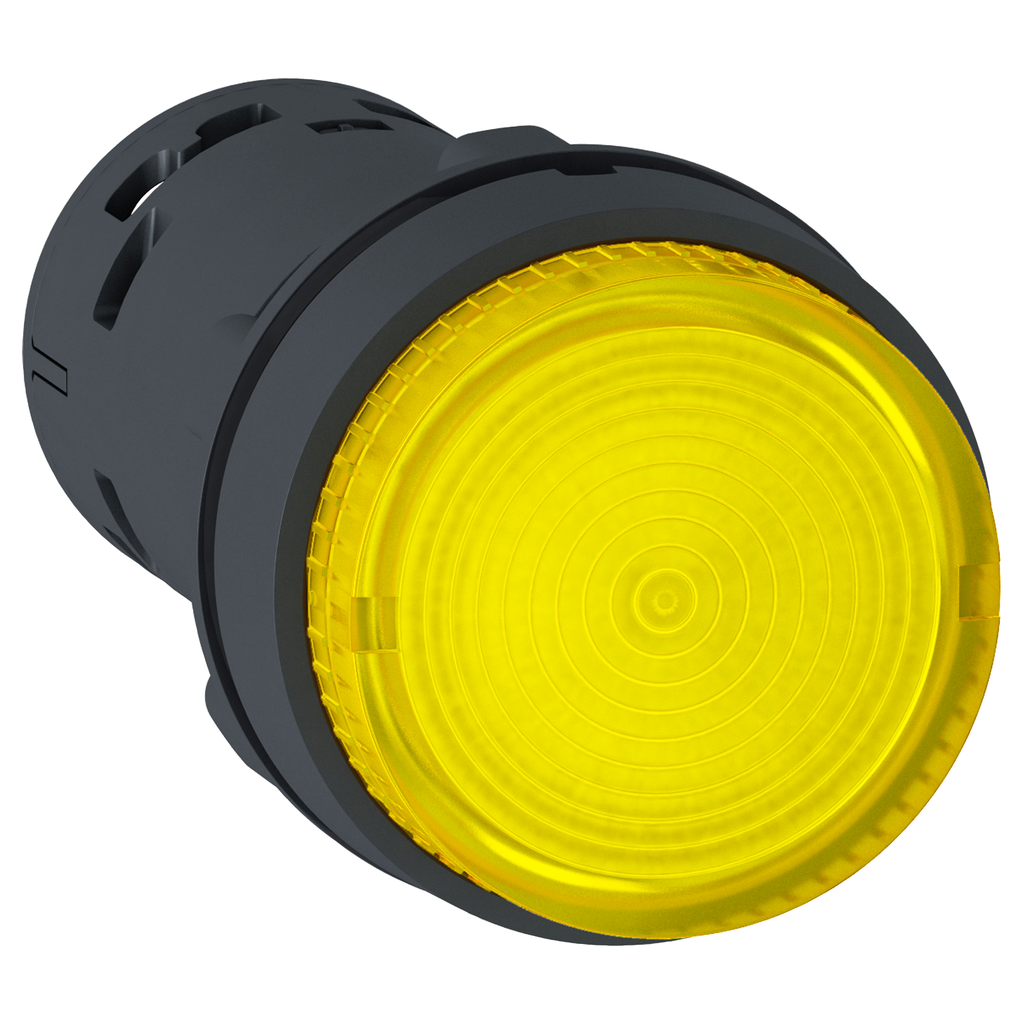

This Harmony XB7, illuminated projecting monolithic yellow push button operates with a spring return mechanism, is supplied with 120V AC, uses an integral LED and screw clamp terminals. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, minimizing errors in machine control and enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Monolithic illuminated push button, Harmony XB7, plastic, yellow, 22mm, integral LED, spring return, 110…120V AC, 1NO
Monolithic illuminated push button, Harmony XB7, plastic, yellow, 22mm, integral LED, spring return, 110…120V AC, 1NO
SKU: 488891
Category: Automation & Control
