This product is part of the Modicon M171/M172 range, an offer I/O modules for HVAC solutions. This additional I/O module offers 8 discrete inputs with sink or source (positive/negative) discrete input logic. It is a module with discrete input voltage ranges from 24V AC/DC to 48V DC and analogue output voltage ranges from 0V to 15V. This module offers 3 SPST relay output, 2 SPST relay output with same common and 2 SPDT relay output with independent common discrete output. It is an IP20 rated product. Its dimensions are 140mm (width) x 61.6mm (depth) x 110mm (height). It weighs 0.19kg. The main application of this module is HVAC and pumping solution. Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172. Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert – HVAC are designed for maximizing profitability and energy efficiency.

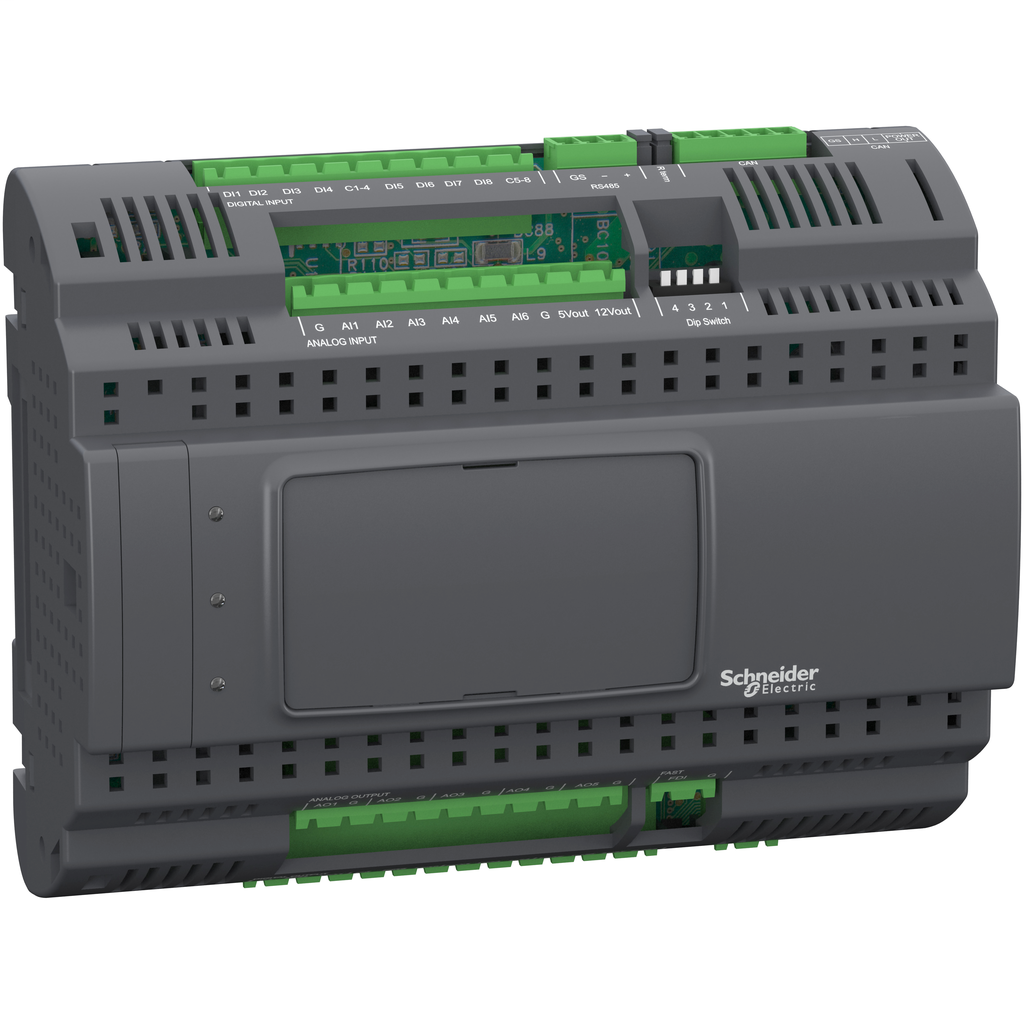

Expansion module, Modicon M171/M172/M173, performance, 27 IO
Expansion module, Modicon M171/M172/M173, performance, 27 IO
SKU: 508517
Category: Automation & Control
Reviews (0)
Be the first to review “Expansion module, Modicon M171/M172/M173, performance, 27 IO” Cancel reply
