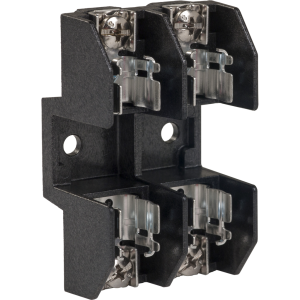

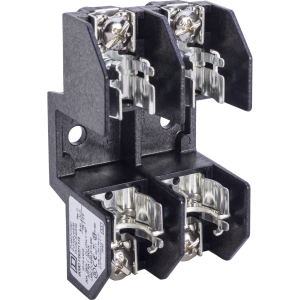

Linergy terminal block, fuse holder, Class H, 30 A, 250 V, 1 pole

Linergy NEMA fuse holders are panel mount fuse holders that will accept class H, R, CC, M, and J fuses up to 200 Amps. This one pole fuse holder will accept class H fuses. The rating of the fuse can be up to 30 Amps with a 250 V maximum rating. The pressure wire connectors will accept 14 to 10 AWG (2.5 to 4 mm2) solid or stranded copper wire. Fuse clips are made of a copper alloy that is tin plated. The fuse clips are reinforced for a better connection. The fuse holder base is made of high impact thermoplastic. AIC Rating in accordance with UL512 is 10,000 Amp. This fuse holder is UL listed and CSA certified. Type S starters are UL listed and CSA certified for global applications.
