This product is part of the PacDrive 3 range, an offer of connection boxes for Lexium 62 ILM daisy chains. This type C connection box for Lexium 62 ILM daisy chains. Its dimensions are 255mm (width) x 102mm (depth) x 265mm (height). It weighs 0.535kg. It is suitable for use in general machine control, packaging machine automation, material handling applications. Lexium 62 ILM integrated servo modules can be controlled with all PacDrive LMC Eco and Pro/Pro 2 series motion controllers via SERCOS communication. Multiaxis integrated servo drives from 0.31kW to 1.91kW for automation solutions based on PacDrive 3.

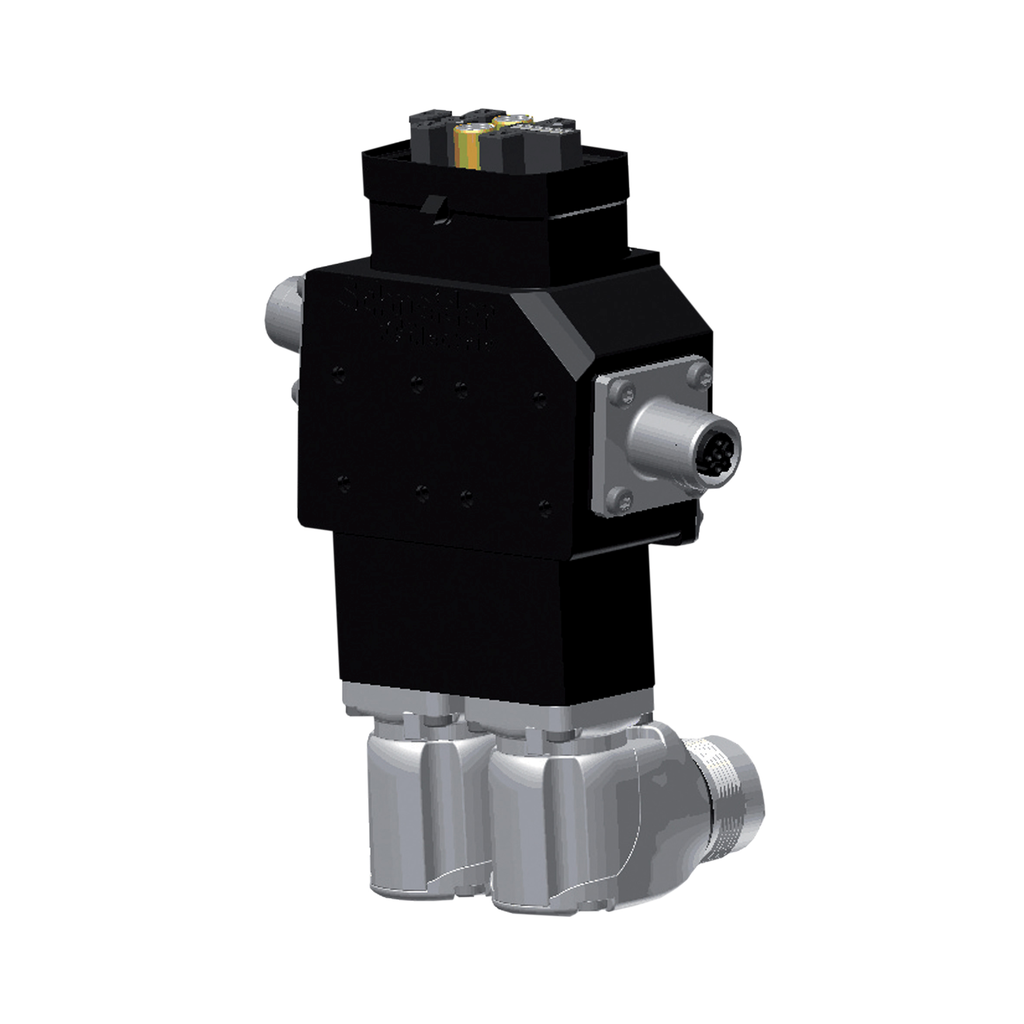

Lexium 62 ILM Daisy chain connection box assembly – type C
Lexium 62 ILM Daisy chain connection box assembly – type C
