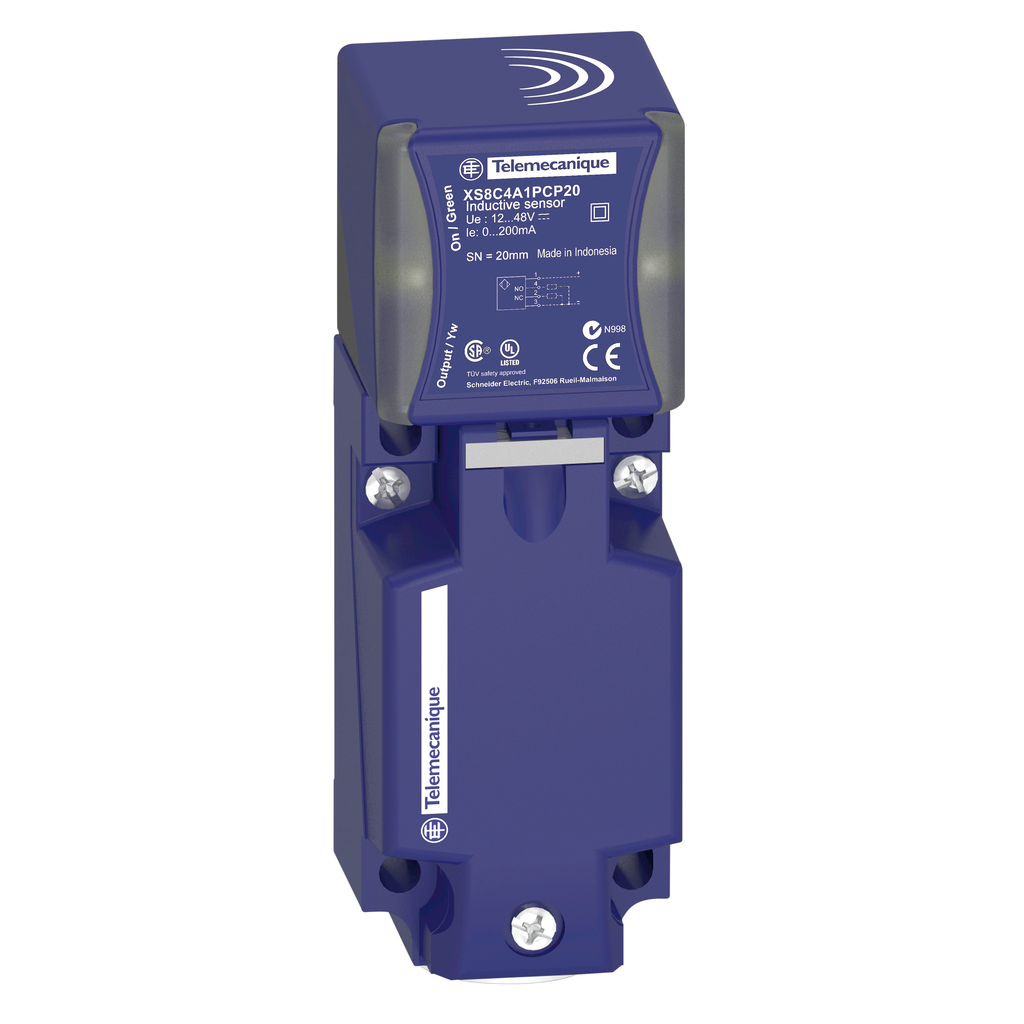

Inductive proximity sensors XS, inductive sensor XS8 40x40x117, PBT, Sn20 mm, 12…48 VDC, terminals

Inductive proximity sensors XS, inductive sensor XS8 40x40x117, PBT, Sn20 mm, 12…48 VDC, terminals

SKU: 4740316 Category: Automation & Control
Share
Facebook Twitter Pinterest linkedin Telegram
  • Description
  • Reviews (0)
Description

This product is part of the XS range, an offer of inductive proximity sensors. This general purpose inductive proximity sensor in XS8 flat form 40mm x 40mm x 117mm design. It is flush mountable and has a frontal detection face. It supports 20mm nominal sensing distance and 1 normally opened + 1 normally closed NPN discrete output. It is furnished with screw-clamp terminal for electrical connection. It is an inductive proximity sensor with a rated supply voltage of 12V to 48V DC with reverse polarity protection, no-load current consumption of 0mA to 15mA and a switching frequency of ≤300Hz. It is an IP65, IP67 and IP69K rated product. The enclosure is made of PBT. Its dimensions are 40mm (Length) x 117mm (Width) x 40mm (Height) and weighs 0.244kg. It is suitable for railway, mobile equipment, lifts, escalators, hoisting, material handling/conveying/logistics, material working/machine tools, packaging, robotics, food and beverage industries. This product is certified by CE, CSA, E2, CCC and UL. It compliant with international standards, certifications in standard and increased range. Ex Osiprox, OsiSense XS and XT inductive and capacitive proximity sensors for non-contact sensing. Inductive proximity sensors technology for non-contact sensing of metal objects up to 60mm.
